Documentation for ATIS-Draft-03-00-79

Complex Type: PiServiceStatus

[Table of contents]

Super-types: None
Sub-types: None
Name PiServiceStatus
Used by (from the same schema document) Element piServiceStatus
Abstract no
XML Instance Representation
<...>
<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]
<requests> [1]
Start Sequence [1..100]
<request> PIServiceStatusRequest </request> [1]
End Sequence
</requests>
<timeProvided> CPT-Time </timeProvided> [1]
<rangeResponses> [0..1]
Start Sequence [1..100]
<rangeResponse> PISchedAdherenceRange </rangeResponse> [1]
End Sequence
</rangeResponses>
<countdownResponses> [0..1]
Start Sequence [1..100]
<countdownResponse> PISchedAdherenceCountdown </countdownResponse> [1]
End Sequence
</countdownResponses>
<offSchedResponses> [0..1]
Start Sequence [1..100]
<offSchedResponse> PISchedAdherenceOffSched </offSchedResponse> [1]
End Sequence
</offSchedResponses>
</...>

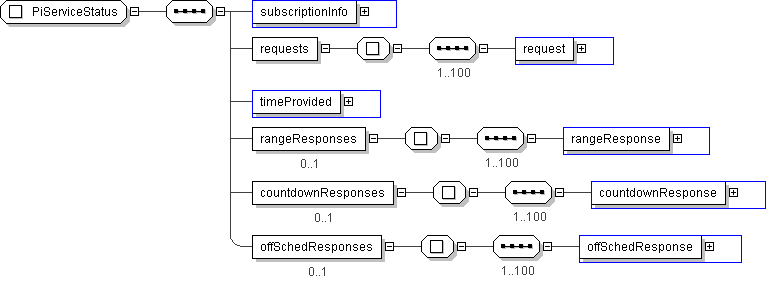

Diagram
h-527207252 h-1727769658 h-1969397032 h-1015345671 h-798003987 h253408332
Schema Component Representation
<xs:complexType name="PiServiceStatus">
<xs:sequence>
<xs:element name="subscriptionInfo" type=" CPTSubscriptionHeader "/>
<xs:element name="requests">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="100">
<xs:element name="request" type=" PIServiceStatusRequest "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="timeProvided" type=" CPT-Time "/>
<xs:element name="rangeResponses" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="100">
<xs:element name="rangeResponse" type=" PISchedAdherenceRange "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="countdownResponses" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="100">
<xs:element name="countdownResponse" type=" PISchedAdherenceCountdown "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="offSchedResponses" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="100">
<xs:element name="offSchedResponse" type=" PISchedAdherenceOffSched "/>
</xs:sequence>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
