Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

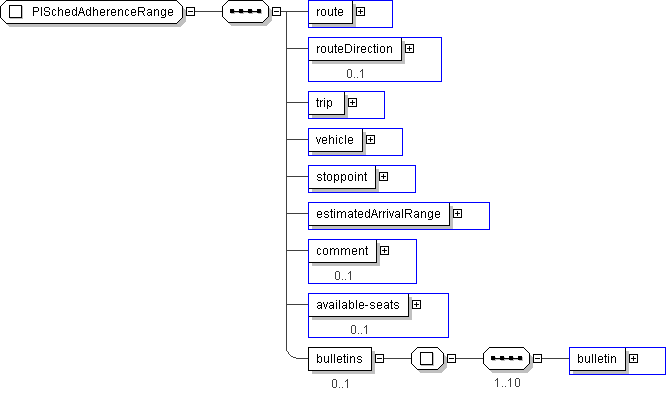

Name	PISchedAdherenceRange
Used by (from the same schema document)	Complex Type PiServiceStatus
Abstract	no

XML Instance Representation

<...>

<route> SCHRouteIden </route> [1]

<routeDirection> SCH-RouteDirectionName </routeDirection> [0..1]

<trip> SCHTripIden </trip> [1]

<vehicle> CPTVehicleIden </vehicle> [1]

<stoppoint> CPTStoppointIden </stoppoint> [1]

<estimatedArrivalRange> PI-EstimatedArrivalRange </estimatedArrivalRange> [1]

<comment> CPT-Footnote </comment> [0..1]

<available-seats> CPT-SeatCount </available-seats> [0..1]

<bulletins> [0..1]
Start Sequence [1..10]

<bulletin> PIServiceBulletin </bulletin> [1]

End Sequence
</bulletins>

</...>

Schema Component Representation

<xs:complexType name="PISchedAdherenceRange">

<xs:sequence>

<xs:element name="route" type=" SCHRouteIden "/>

<xs:element name="routeDirection" type=" SCH-RouteDirectionName " minOccurs="0"/>

<xs:element name="trip" type=" SCHTripIden "/>

<xs:element name="vehicle" type=" CPTVehicleIden "/>

<xs:element name="stoppoint" type=" CPTStoppointIden "/>

<xs:element name="estimatedArrivalRange" type=" PI-EstimatedArrivalRange "/>

<xs:element name="comment" type=" CPT-Footnote " minOccurs="0"/>

<xs:element name="available-seats" type=" CPT-SeatCount " minOccurs="0"/>

<xs:element name="bulletins" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="10">

<xs:element name="bulletin" type=" PIServiceBulletin "/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>
