Documentation for ATIS-Draft-03-00-79

Element: piServiceStatus

[Table of contents]

Name piServiceStatus
Type PiServiceStatus
Nillable no
Abstract no

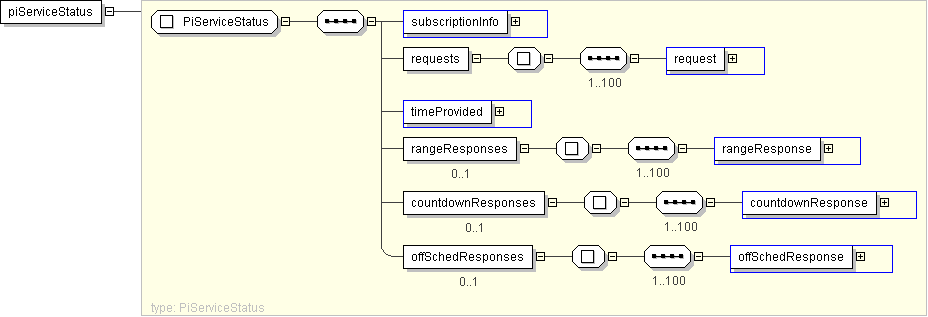

Logical Diagram
h-841091506 h872320423 h-1424398536 h51974980 h334240807
XML Instance Representation
<piServiceStatus>
<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]
<requests> [1]
Start Sequence [1..100]
<request> PIServiceStatusRequest </request> [1]
End Sequence
</requests>
<timeProvided> CPT-Time </timeProvided> [1]
<rangeResponses> [0..1]
Start Sequence [1..100]
<rangeResponse> PISchedAdherenceRange </rangeResponse> [1]
End Sequence
</rangeResponses>
<countdownResponses> [0..1]
Start Sequence [1..100]
<countdownResponse> PISchedAdherenceCountdown </countdownResponse> [1]
End Sequence
</countdownResponses>
<offSchedResponses> [0..1]
Start Sequence [1..100]
<offSchedResponse> PISchedAdherenceOffSched </offSchedResponse> [1]
End Sequence
</offSchedResponses>
</piServiceStatus>

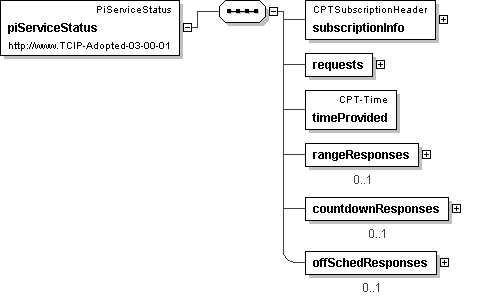

Diagram
h-527207252 h-1727769658 h-1969397032 h-1015345671 h-798003987 h253408332
Schema Component Representation
<xs:element name="piServiceStatus" type=" PiServiceStatus "/>
