Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

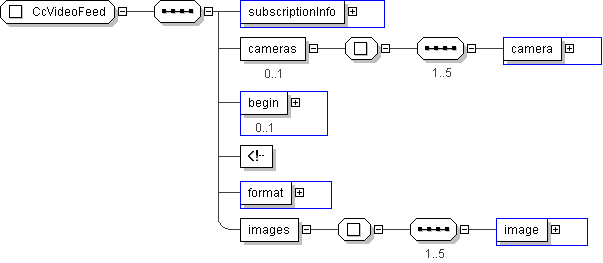

Name	CcVideoFeed
Used by (from the same schema document)	Element ccVideoFeed
Abstract	no

XML Instance Representation

<...>

<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]

<cameras> [0..1]
Start Sequence [1..5]

<camera> CPT-GenericCounter </camera> [1]

End Sequence
</cameras>

<begin> CPT-DateTime </begin> [0..1]

<format> PI-GraphicFormat </format> [1]

<images> [1]
Start Sequence [1..5]

<image> PI-BinaryVideoData </image> [1]

End Sequence
</images>

</...>

Schema Component Representation

<xs:complexType name="CcVideoFeed">

<xs:sequence>

<xs:element name="subscriptionInfo" type=" CPTSubscriptionHeader "/>

<xs:element name="cameras" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="5">

<xs:element name="camera" type=" CPT-GenericCounter "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="begin" type=" CPT-DateTime " minOccurs="0"/>

<-- default to immediate, -->

<xs:element name="format" type=" PI-GraphicFormat "/>

<xs:element name="images">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="5">

<xs:element name="image" type=" PI-BinaryVideoData "/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>
