Documentation for ATIS-Draft-03-00-79

Element: ccVideoFeed

[Table of contents]

Name ccVideoFeed
Type CcVideoFeed
Nillable no
Abstract no

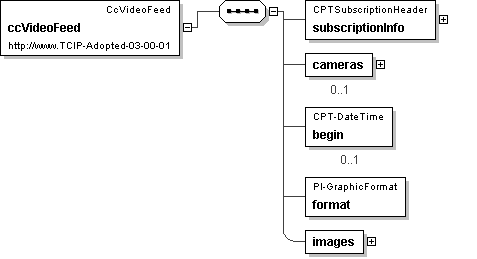

Logical Diagram
h-841091506 h-1349473365 h-1385050853
XML Instance Representation
<ccVideoFeed>
<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]
<cameras> [0..1]
Start Sequence [1..5]
<camera> CPT-GenericCounter </camera> [1]
End Sequence
</cameras>
<begin> CPT-DateTime </begin> [0..1]
<format> PI-GraphicFormat </format> [1]
<images> [1]
Start Sequence [1..5]
<image> PI-BinaryVideoData </image> [1]
End Sequence
</images>
</ccVideoFeed>

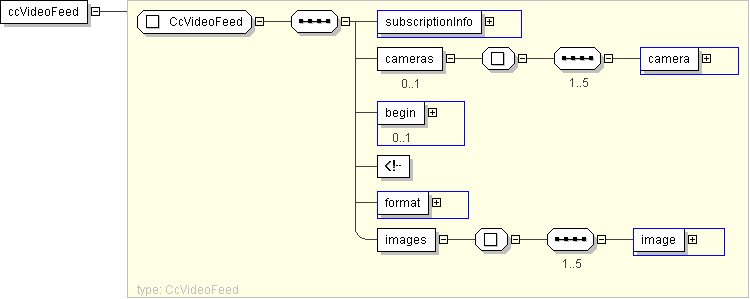

Diagram
h-527207252 h240005744 h1272267302 h558168688 h1089102069
Schema Component Representation
<xs:element name="ccVideoFeed" type=" CcVideoFeed "/>
