Documentation for ATIS-Draft-03-00-79

Complex Type: CcFleetHealthAlarm

[Table of contents]

Super-types: None
Sub-types: None
Name CcFleetHealthAlarm
Used by (from the same schema document) Element ccFleetHealthAlarm
Abstract no
XML Instance Representation
<...>
<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]
<vehicles> [0..1]
Start Sequence [1..25000]
<vehicle> CPTVehicleIden </vehicle> [1]
End Sequence
</vehicles>
<alarms> [0..1]
Start Sequence [1..25000]
<alarm> CCPTVAlarm </alarm> [1]
End Sequence
</alarms>
<status-reports> [0..1]
Start Sequence [1..25000]
<status-report> OBHealthStatusRecord </status-report> [1]
End Sequence
</status-reports>
<localCcFleetHealthAlarm> local:CcFleetHealthAlarm </localCcFleetHealthAlarm> [0..1]
</...>

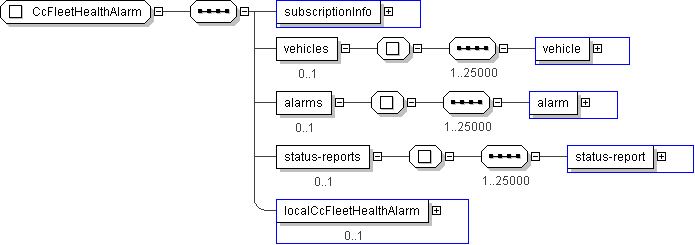

Diagram
h-527207252 h1471596526 h1109019940 h-144448905 h1216070892
Schema Component Representation
<xs:complexType name="CcFleetHealthAlarm">
<xs:sequence>
<xs:element name="subscriptionInfo" type=" CPTSubscriptionHeader "/>
<xs:element name="vehicles" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="25000">
<xs:element name="vehicle" type=" CPTVehicleIden "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="alarms" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="25000">
<xs:element name="alarm" type=" CCPTVAlarm "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="status-reports" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="25000">
<xs:element name="status-report" type=" OBHealthStatusRecord "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="localCcFleetHealthAlarm" type=" local:CcFleetHealthAlarm " minOccurs="0"/>
</xs:sequence>
</xs:complexType>
