Documentation for ATIS-Draft-03-00-79

Element: ccFleetHealthAlarm

[Table of contents]

Name ccFleetHealthAlarm
Type CcFleetHealthAlarm
Nillable no
Abstract no

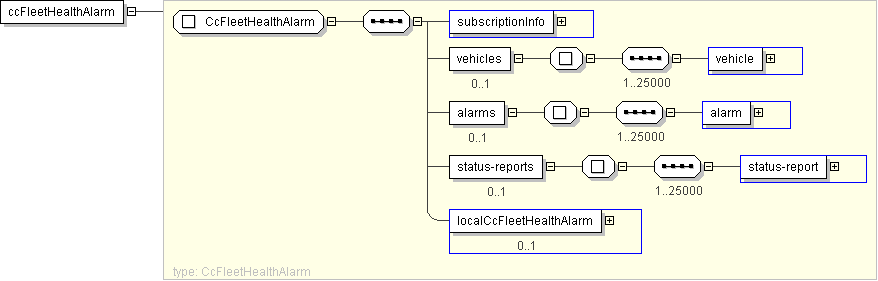

Logical Diagram
h-841091506 h-1015184214 h-1614996763 h-858592633 h370787887
XML Instance Representation
<ccFleetHealthAlarm>
<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]
<vehicles> [0..1]
Start Sequence [1..25000]
<vehicle> CPTVehicleIden </vehicle> [1]
End Sequence
</vehicles>
<alarms> [0..1]
Start Sequence [1..25000]
<alarm> CCPTVAlarm </alarm> [1]
End Sequence
</alarms>
<status-reports> [0..1]
Start Sequence [1..25000]
<status-report> OBHealthStatusRecord </status-report> [1]
End Sequence
</status-reports>
<localCcFleetHealthAlarm> local:CcFleetHealthAlarm </localCcFleetHealthAlarm> [0..1]
</ccFleetHealthAlarm>

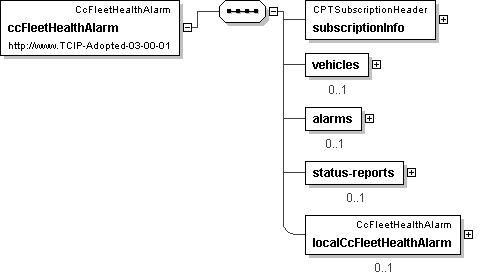

Diagram
h-527207252 h1471596526 h1109019940 h-144448905 h1216070892
Schema Component Representation
<xs:element name="ccFleetHealthAlarm" type=" CcFleetHealthAlarm "/>
