Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	OBHealthStatusRecord
Used by (from the same schema document)	Complex Type CcFleetHealthAlarm , Complex Type CcPTVehicleAlarm , Complex Type ObReportHealth
Abstract	no

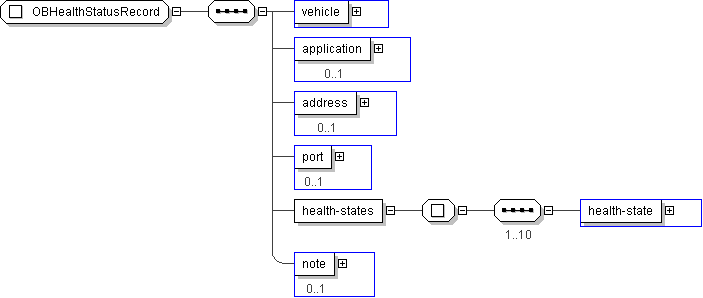

XML Instance Representation

<...>

<vehicle> CPTVehicleIden </vehicle> [1]

<application> CPT-ApplicationID </application> [0..1]

<address> CPT-IP-Address </address> [0..1]

<port> CPT-UDP-TCP-PortNumber </port> [0..1]

<health-states> [1]
Start Sequence [1..10]

<health-state> CPT-HealthStatus </health-state> [1]

End Sequence
</health-states>

<note> CPT-Footnote </note> [0..1]

</...>

Schema Component Representation

<xs:complexType name="OBHealthStatusRecord">

<xs:sequence>

<xs:element name="vehicle" type=" CPTVehicleIden "/>

<xs:element name="application" type=" CPT-ApplicationID " minOccurs="0"/>

<xs:element name="address" type=" CPT-IP-Address " minOccurs="0"/>

<xs:element name="port" type=" CPT-UDP-TCP-PortNumber " minOccurs="0"/>

<xs:element name="health-states">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="10">

<xs:element name="health-state" type=" CPT-HealthStatus "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="note" type=" CPT-Footnote " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
