Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

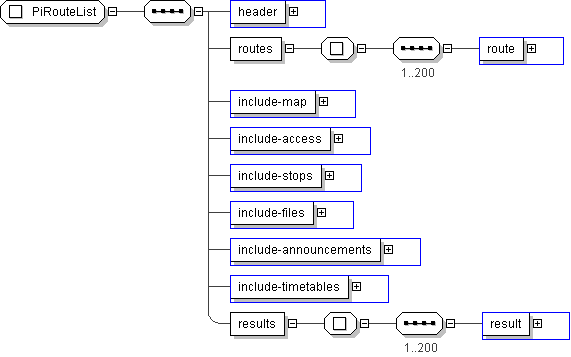

Name	PiRouteList
Used by (from the same schema document)	Element piRouteList
Abstract	no

XML Instance Representation

<...>

<header> CPTSubscriptionHeader </header> [1]

<routes> [1]
Start Sequence [1..200]

<route> SCHRouteIden </route> [1]

End Sequence
</routes>

<include-map> CPT-Boolean </include-map> [1]

<include-access> CPT-Boolean </include-access> [1]

<include-stops> CPT-Boolean </include-stops> [1]

<include-files> CPT-Boolean </include-files> [1]

<include-announcements> CPT-Boolean </include-announcements> [1]

<include-timetables> CPT-Boolean </include-timetables> [1]

<results> [1]
Start Sequence [1..200]

<result> PIRouteInfo </result> [1]

End Sequence
</results>

</...>

Schema Component Representation

<xs:complexType name="PiRouteList">

<xs:sequence>

<xs:element name="header" type=" CPTSubscriptionHeader "/>

<xs:element name="routes">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="200">

<xs:element name="route" type=" SCHRouteIden "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="include-map" type=" CPT-Boolean "/>

<xs:element name="include-access" type=" CPT-Boolean "/>

<xs:element name="include-stops" type=" CPT-Boolean "/>

<xs:element name="include-files" type=" CPT-Boolean "/>

<xs:element name="include-announcements" type=" CPT-Boolean "/>

<xs:element name="include-timetables" type=" CPT-Boolean "/>

<xs:element name="results">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="200">

<xs:element name="result" type=" PIRouteInfo "/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>
