Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

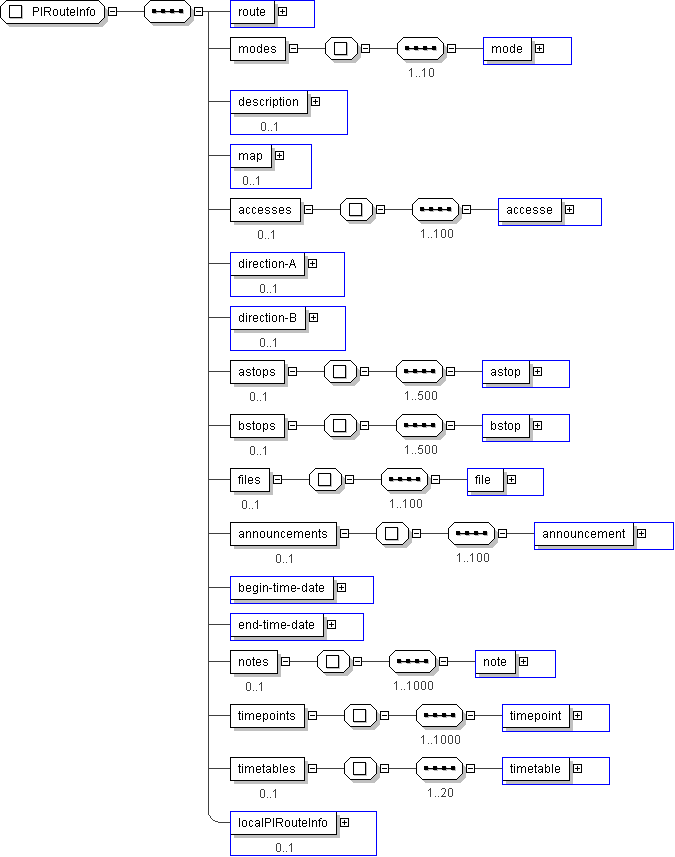

Name	PIRouteInfo
Used by (from the same schema document)	Complex Type PiRouteList
Abstract	no

XML Instance Representation

<...>

<route> SCHRouteIden </route> [1]

<modes> [1]
Start Sequence [1..10]

<mode> CPT-Mode </mode> [1]

End Sequence
</modes>

<description> CPT-Footnote </description> [0..1]

<map> PIMap </map> [0..1]

<accesses> [0..1]
Start Sequence [1..100]

<accesse> PIAccessibility </accesse> [1]

End Sequence
</accesses>

<direction-A> SCH-RouteDirectionName </direction-A> [0..1]

<direction-B> SCH-RouteDirectionName </direction-B> [0..1]

<astops> [0..1]
Start Sequence [1..500]

<astop> CPTStoppointIden </astop> [1]

End Sequence
</astops>

<bstops> [0..1]
Start Sequence [1..500]

<bstop> CPTStoppointIden </bstop> [1]

End Sequence
</bstops>

<files> [0..1]
Start Sequence [1..100]

<file> PIAgencyStaticFile </file> [1]

End Sequence
</files>

<announcements> [0..1]
Start Sequence [1..100]

<announcement> PIAnnouncement </announcement> [1]

End Sequence
</announcements>

<begin-time-date> CPT-DateTime </begin-time-date> [1]

<end-time-date> CPT-DateTime </end-time-date> [1]

<notes> [0..1]
Start Sequence [1..1000]

<note> SCHNoteInfo </note> [1]

End Sequence
</notes>

<timepoints> [1]
Start Sequence [1..1000]

<timepoint> PITimetableTimepoint </timepoint> [1]

End Sequence
</timepoints>

<timetables> [0..1]
Start Sequence [1..20]

<timetable> PIXMLTimetable </timetable> [1]

End Sequence
</timetables>

<localPIRouteInfo> local:PIRouteInfo </localPIRouteInfo> [0..1]

</...>

Schema Component Representation

<xs:complexType name="PIRouteInfo">

<xs:sequence>

<xs:element name="route" type=" SCHRouteIden "/>

<xs:element name="modes">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="10">

<xs:element name="mode" type=" CPT-Mode "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="description" type=" CPT-Footnote " minOccurs="0"/>

<xs:element name="map" type=" PIMap " minOccurs="0"/>

<xs:element name="accesses" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="100">

<xs:element name="accesse" type=" PIAccessibility "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="direction-A" type=" SCH-RouteDirectionName " minOccurs="0"/>

<xs:element name="direction-B" type=" SCH-RouteDirectionName " minOccurs="0"/>

<xs:element name="astops" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="500">

<xs:element name="astop" type=" CPTStoppointIden "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="bstops" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="500">

<xs:element name="bstop" type=" CPTStoppointIden "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="files" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="100">

<xs:element name="file" type=" PIAgencyStaticFile "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="announcements" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="100">

<xs:element name="announcement" type=" PIAnnouncement "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="begin-time-date" type=" CPT-DateTime "/>

<xs:element name="end-time-date" type=" CPT-DateTime "/>

<xs:element name="notes" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="1000">

<xs:element name="note" type=" SCHNoteInfo "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="timepoints">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="1000">

<xs:element name="timepoint" type=" PITimetableTimepoint "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="timetables" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="20">

<xs:element name="timetable" type=" PIXMLTimetable "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="localPIRouteInfo" type=" local:PIRouteInfo " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
