Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	PIMap
Used by (from the same schema document)	Complex Type PiItineraryMap , Complex Type PiLocationMap , Complex Type PiNearestStopList , Complex Type PiStoppointParking , Complex Type PIRouteInfo , Complex Type PIXMLTimetable
Abstract	no

XML Instance Representation

<...>

<map-image> PI-BinaryImageData </map-image> [0..1]

<map-format> PI-GraphicFormat </map-format> [0..1]

<map-URL> CPT-Footnote </map-URL> [0..1]

<map-headline> CPT-Footnote </map-headline> [0..1]

<map-footnote> CPT-Footnote </map-footnote> [0..1]

<itineraryID> im:ReferenceID </itineraryID> [0..1]

</...>

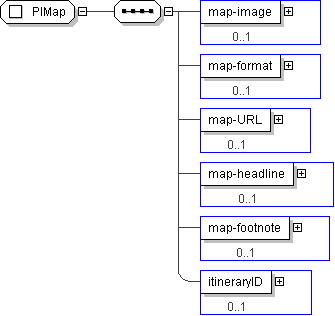

Schema Component Representation

<xs:complexType name="PIMap">

<xs:sequence>

<xs:element name="map-image" type=" PI-BinaryImageData " minOccurs="0"/>

<xs:element name="map-format" type=" PI-GraphicFormat " minOccurs="0"/>

<xs:element name="map-URL" type=" CPT-Footnote " minOccurs="0"/>

<xs:element name="map-headline" type=" CPT-Footnote " minOccurs="0"/>

<xs:element name="map-footnote" type=" CPT-Footnote " minOccurs="0"/>

<xs:element name="itineraryID" type=" im:ReferenceID " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
