Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	PIXMLTimetable
Used by (from the same schema document)	Complex Type PiPushTextTimetable , Complex Type PiTextTimetable , Complex Type PIRouteInfo
Abstract	no

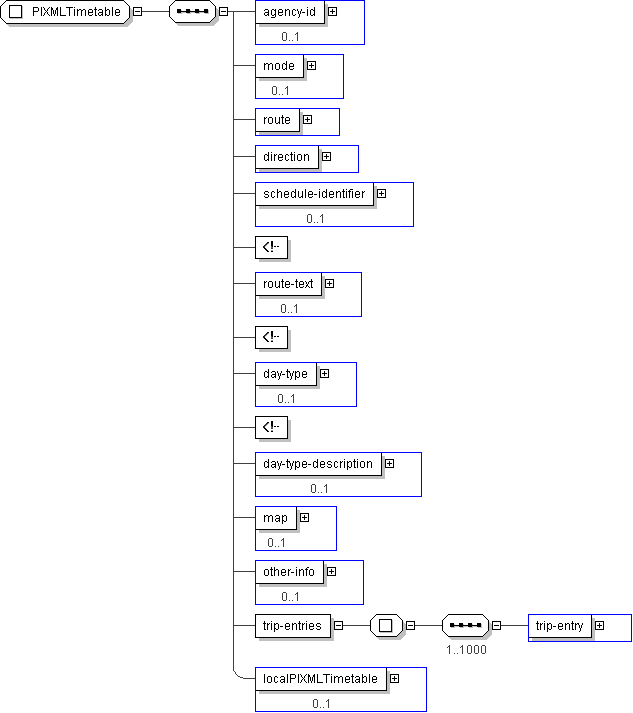

XML Instance Representation

<...>

<agency-id> CPT-AgencyID </agency-id> [0..1]

<mode> CPT-Mode </mode> [0..1]

<route> SCHRouteIden </route> [1]

<direction> SCH-RouteDirectionName </direction> [1]

<schedule-identifier> CPT-Footnote </schedule-identifier> [0..1]

<route-text> CPT-Footnote </route-text> [0..1]

<day-type> SCH-DayType </day-type> [0..1]

<day-type-description> SCH-DayTypeDescription </day-type-description> [0..1]

<map> PIMap </map> [0..1]

<other-info> CPT-Footnote </other-info> [0..1]

<trip-entries> [1]
Start Sequence [1..1000]

<trip-entry> SCHTimeTableTrip </trip-entry> [1]

End Sequence
</trip-entries>

<localPIXMLTimetable> local:PIXMLTimetable </localPIXMLTimetable> [0..1]

</...>

Schema Component Representation

<xs:complexType name="PIXMLTimetable">

<xs:sequence>

<xs:element name="agency-id" type=" CPT-AgencyID " minOccurs="0"/>

<xs:element name="mode" type=" CPT-Mode " minOccurs="0"/>

<xs:element name="route" type=" SCHRouteIden "/>

<xs:element name="direction" type=" SCH-RouteDirectionName "/>

<xs:element name="schedule-identifier" type=" CPT-Footnote " minOccurs="0"/>

<-- agency use -->

<xs:element name="route-text" type=" CPT-Footnote " minOccurs="0"/>

<-- printable misc route info -->

<xs:element name="day-type" type=" SCH-DayType " minOccurs="0"/>

<-- all if not specified -->

<xs:element name="day-type-description" type=" SCH-DayTypeDescription " minOccurs="0"/>

<xs:element name="map" type=" PIMap " minOccurs="0"/>

<xs:element name="other-info" type=" CPT-Footnote " minOccurs="0"/>

<xs:element name="trip-entries">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="1000">

<xs:element name="trip-entry" type=" SCHTimeTableTrip "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="localPIXMLTimetable" type=" local:PIXMLTimetable " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
