Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

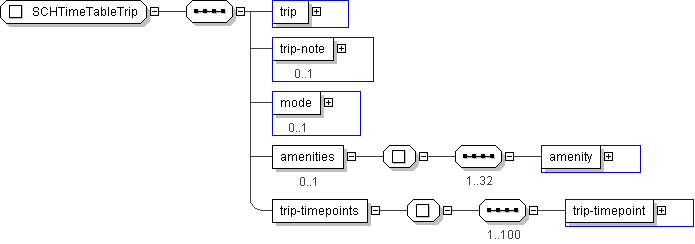

Name	SCHTimeTableTrip
Used by (from the same schema document)	Complex Type PIXMLTimetable
Abstract	no

XML Instance Representation

<...>

<trip> SCHTripIden </trip> [1]

<trip-note> SCHNoteIden </trip-note> [0..1]

<mode> CPT-Mode </mode> [0..1]

<amenities> [0..1]
Start Sequence [1..32]

<amenity> atis:AmenitiesList </amenity> [1]

End Sequence
</amenities>

<trip-timepoints> [1]
Start Sequence [1..100]

<trip-timepoint> SCHTimeTableTripTP </trip-timepoint> [1]

End Sequence
</trip-timepoints>

</...>

Schema Component Representation

<xs:complexType name="SCHTimeTableTrip">

<xs:sequence>

<xs:element name="trip" type=" SCHTripIden "/>

<xs:element name="trip-note" type=" SCHNoteIden " minOccurs="0"/>

<xs:element name="mode" type=" CPT-Mode " minOccurs="0"/>

<xs:element name="amenities" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="32">

<xs:element name="amenity" type=" atis:AmenitiesList "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="trip-timepoints">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="100">

<xs:element name="trip-timepoint" type=" SCHTimeTableTripTP "/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>
