Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	PiNearestStopList
Used by (from the same schema document)	Element piNearestStopList
Abstract	no

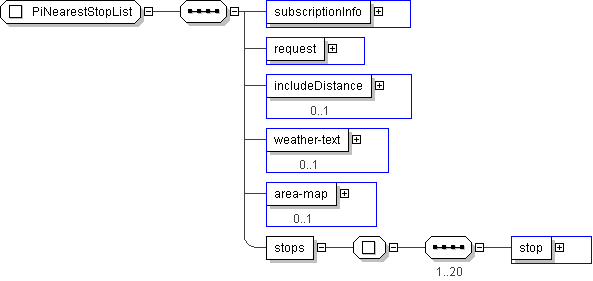

XML Instance Representation

<...>

<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]

<request> PINearestStopRequest </request> [1]

<includeDistance> lrms:Distance </includeDistance> [0..1]

<weather-text> CPT-Footnote </weather-text> [0..1]

<area-map> PIMap </area-map> [0..1]

<stops> [1]
Start Sequence [1..20]

<stop> PINearestStop </stop> [1]

End Sequence
</stops>

</...>

Schema Component Representation

<xs:complexType name="PiNearestStopList">

<xs:sequence>

<xs:element name="subscriptionInfo" type=" CPTSubscriptionHeader "/>

<xs:element name="request" type=" PINearestStopRequest "/>

<xs:element name="includeDistance" type=" lrms:Distance " minOccurs="0"/>

<xs:element name="weather-text" type=" CPT-Footnote " minOccurs="0"/>

<xs:element name="area-map" type=" PIMap " minOccurs="0"/>

<xs:element name="stops">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="20">

<xs:element name="stop" type=" PINearestStop "/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>
