Documentation for ATIS-Draft-03-00-79

Element: piRouteList

[Table of contents]

Name piRouteList
Type PiRouteList
Nillable no
Abstract no

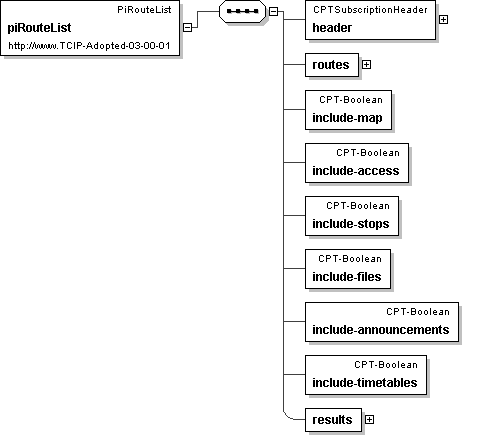

Logical Diagram
h-1421071056 h-1124933139 h-801290829
XML Instance Representation
<piRouteList>
<header> CPTSubscriptionHeader </header> [1]
<routes> [1]
Start Sequence [1..200]
<route> SCHRouteIden </route> [1]
End Sequence
</routes>
<include-map> CPT-Boolean </include-map> [1]
<include-access> CPT-Boolean </include-access> [1]
<include-stops> CPT-Boolean </include-stops> [1]
<include-files> CPT-Boolean </include-files> [1]
<include-announcements> CPT-Boolean </include-announcements> [1]
<include-timetables> CPT-Boolean </include-timetables> [1]
<results> [1]
Start Sequence [1..200]
<result> PIRouteInfo </result> [1]
End Sequence
</results>
</piRouteList>

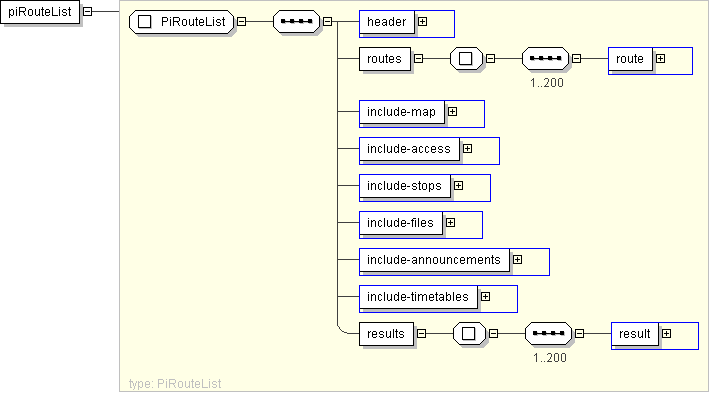

Diagram
h-527207252 h-963684166 h325016637 h325016637 h325016637 h325016637 h325016637 h325016637 h642278169
Schema Component Representation
<xs:element name="piRouteList" type=" PiRouteList "/>
