Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

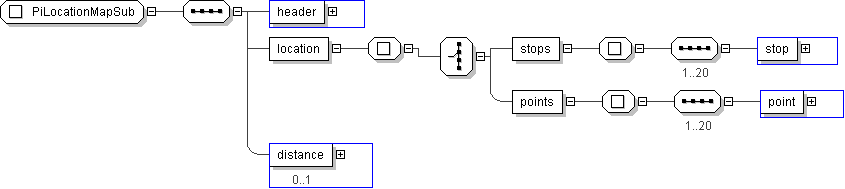

Name	PiLocationMapSub
Used by (from the same schema document)	Element piLocationMapSub
Abstract	no

XML Instance Representation

<...>

<header> CPTSubscriptionHeader </header> [1]

<location> [1]
Start Choice [1]

<stops> [1]
Start Sequence [1..20]

<stop> CPTStoppointIden </stop> [1]

End Sequence
</stops>

<points> [1]
Start Sequence [1..20]

<point> SPPoint </point> [1]

End Sequence
</points>

End Choice
</location>

<distance> lrms:Distance </distance> [0..1]

</...>

Schema Component Representation

<xs:complexType name="PiLocationMapSub">

<xs:sequence>

<xs:element name="header" type=" CPTSubscriptionHeader "/>

<xs:element name="location">

<xs:complexType>

<xs:choice>

<xs:element name="stops">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="20">

<xs:element name="stop" type=" CPTStoppointIden "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="points">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="20">

<xs:element name="point" type=" SPPoint "/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:choice>

</xs:complexType>

</xs:element>

<xs:element name="distance" type=" lrms:Distance " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
