Documentation for ATIS-Draft-03-00-79

Element: piLocationMapSub

[Table of contents]

Name piLocationMapSub
Type PiLocationMapSub
Nillable no
Abstract no

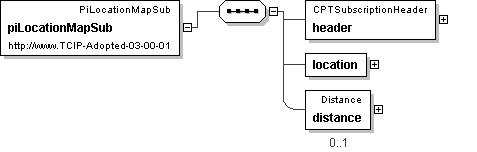

Logical Diagram
h-1421071056 h-1128346216 h1554037208
XML Instance Representation
<piLocationMapSub>
<header> CPTSubscriptionHeader </header> [1]
<location> [1]
Start Choice [1]
<stops> [1]
Start Sequence [1..20]
<stop> CPTStoppointIden </stop> [1]
End Sequence
</stops>
<points> [1]
Start Sequence [1..20]
<point> SPPoint </point> [1]
End Sequence
</points>
End Choice
</location>
<distance> lrms:Distance </distance> [0..1]
</piLocationMapSub>

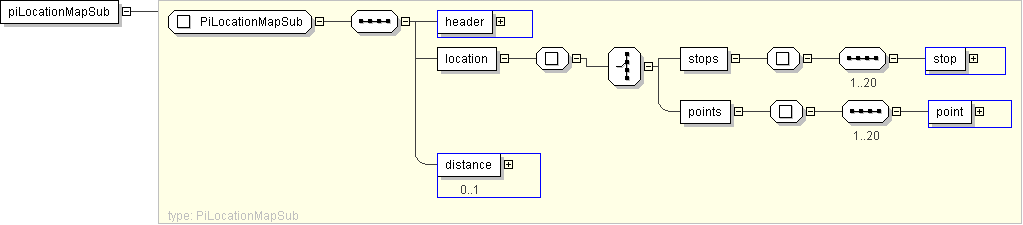

Diagram
h-527207252 h2146772752 h2081204526 h1439634298
Schema Component Representation
<xs:element name="piLocationMapSub" type=" PiLocationMapSub "/>
