Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

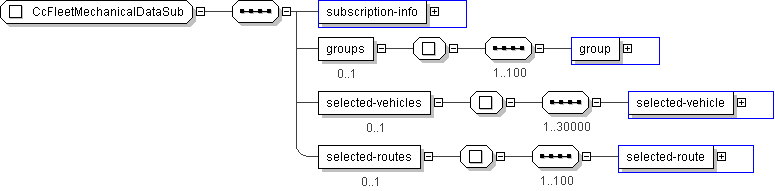

Name	CcFleetMechanicalDataSub
Used by (from the same schema document)	Element ccFleetMechanicalDataSub
Abstract	no

XML Instance Representation

<...>

<subscription-info> CPTSubscriptionHeader </subscription-info> [1]

<groups> [0..1]
Start Sequence [1..100]

<group> CPT-FleetSubset </group> [1]

End Sequence
</groups>

<selected-vehicles> [0..1]
Start Sequence [1..30000]

<selected-vehicle> CPTVehicleIden </selected-vehicle> [1]

End Sequence
</selected-vehicles>

<selected-routes> [0..1]
Start Sequence [1..100]

<selected-route> SCHRouteIden </selected-route> [1]

End Sequence
</selected-routes>

</...>

Schema Component Representation

<xs:complexType name="CcFleetMechanicalDataSub">

<xs:sequence>

<xs:element name="subscription-info" type=" CPTSubscriptionHeader "/>

<xs:element name="groups" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="100">

<xs:element name="group" type=" CPT-FleetSubset "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="selected-vehicles" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="30000">

<xs:element name="selected-vehicle" type=" CPTVehicleIden "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="selected-routes" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="100">

<xs:element name="selected-route" type=" SCHRouteIden "/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>
