Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

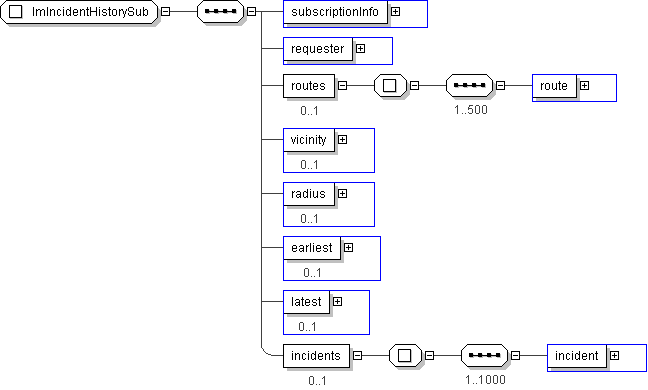

Name	ImIncidentHistorySub
Used by (from the same schema document)	Element imIncidentHistorySub
Abstract	no

XML Instance Representation

<...>

<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]

<requester> CPTEmployeeIden </requester> [1]

<routes> [0..1]
Start Sequence [1..500]

<route> SCHRouteIden </route> [1]

End Sequence
</routes>

<vicinity> lrms:GeoLocation </vicinity> [0..1]

<radius> lrms:Distance </radius> [0..1]

<earliest> CPT-DateTime </earliest> [0..1]

<latest> CPT-DateTime </latest> [0..1]

<incidents> [0..1]
Start Sequence [1..1000]

<incident> IMIncidentIden </incident> [1]

End Sequence
</incidents>

</...>

Schema Component Representation

<xs:complexType name="ImIncidentHistorySub">

<xs:sequence>

<xs:element name="subscriptionInfo" type=" CPTSubscriptionHeader "/>

<xs:element name="requester" type=" CPTEmployeeIden "/>

<xs:element name="routes" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="500">

<xs:element name="route" type=" SCHRouteIden "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="vicinity" type=" lrms:GeoLocation " minOccurs="0"/>

<xs:element name="radius" type=" lrms:Distance " minOccurs="0"/>

<xs:element name="earliest" type=" CPT-DateTime " minOccurs="0"/>

<xs:element name="latest" type=" CPT-DateTime " minOccurs="0"/>

<xs:element name="incidents" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="1000">

<xs:element name="incident" type=" IMIncidentIden "/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>
