Documentation for ATIS-Draft-03-00-79

Element: imIncidentHistorySub

[Table of contents]

Name imIncidentHistorySub
Type ImIncidentHistorySub
Nillable no
Abstract no

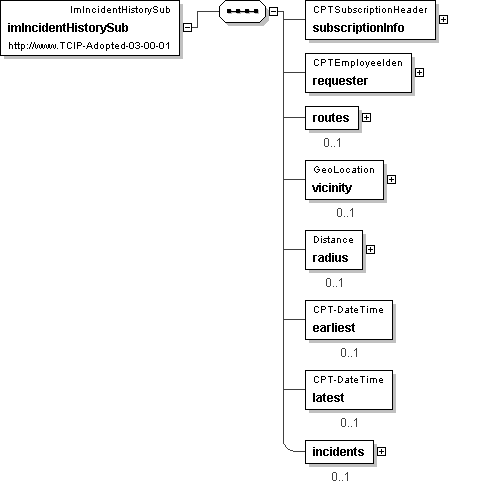

Logical Diagram
h-841091506 h1272129017 h-1124933139 h-1902957252 h-1138378955 h-1020271522
XML Instance Representation
<imIncidentHistorySub>
<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]
<requester> CPTEmployeeIden </requester> [1]
<routes> [0..1]
Start Sequence [1..500]
<route> SCHRouteIden </route> [1]
End Sequence
</routes>
<vicinity> lrms:GeoLocation </vicinity> [0..1]
<radius> lrms:Distance </radius> [0..1]
<earliest> CPT-DateTime </earliest> [0..1]
<latest> CPT-DateTime </latest> [0..1]
<incidents> [0..1]
Start Sequence [1..1000]
<incident> IMIncidentIden </incident> [1]
End Sequence
</incidents>
</imIncidentHistorySub>

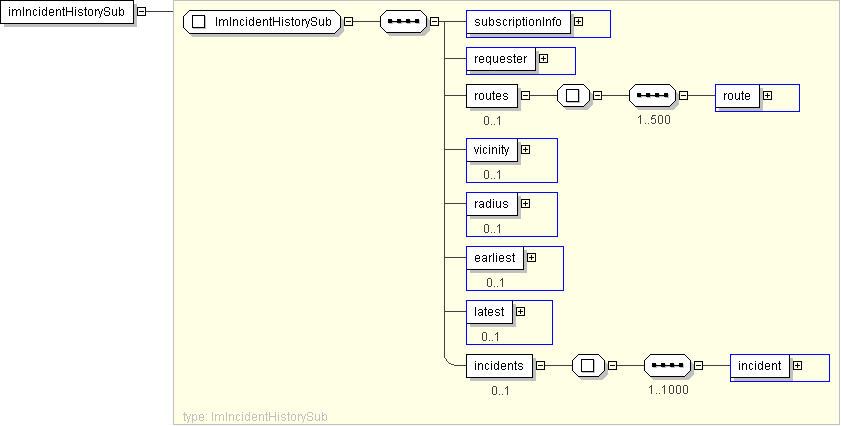

Diagram
h-527207252 h-1303246092 h-963684166 h-542031743 h1439634298 h1272267302 h1272267302 h-1971041825
Schema Component Representation
<xs:element name="imIncidentHistorySub" type=" ImIncidentHistorySub "/>
