Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

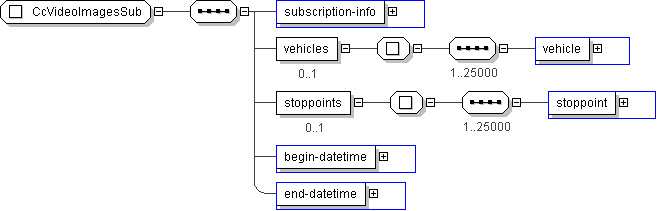

Name	CcVideoImagesSub
Used by (from the same schema document)	Element ccVideoImagesSub
Abstract	no

XML Instance Representation

<...>

<subscription-info> CPTSubscriptionHeader </subscription-info> [1]

<vehicles> [0..1]
Start Sequence [1..25000]

<vehicle> CPTVehicleIden </vehicle> [1]

End Sequence
</vehicles>

<stoppoints> [0..1]
Start Sequence [1..25000]

<stoppoint> CPTStoppointIden </stoppoint> [1]

End Sequence
</stoppoints>

<begin-datetime> CPT-DateTime </begin-datetime> [1]

<end-datetime> CPT-DateTime </end-datetime> [1]

</...>

Schema Component Representation

<xs:complexType name="CcVideoImagesSub">

<xs:sequence>

<xs:element name="subscription-info" type=" CPTSubscriptionHeader "/>

<xs:element name="vehicles" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="25000">

<xs:element name="vehicle" type=" CPTVehicleIden "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="stoppoints" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="25000">

<xs:element name="stoppoint" type=" CPTStoppointIden "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="begin-datetime" type=" CPT-DateTime "/>

<xs:element name="end-datetime" type=" CPT-DateTime "/>

</xs:sequence>

</xs:complexType>
