Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	SchVehicleAssignmentListSub
Used by (from the same schema document)	Element schVehicleAssignmentListSub
Abstract	no

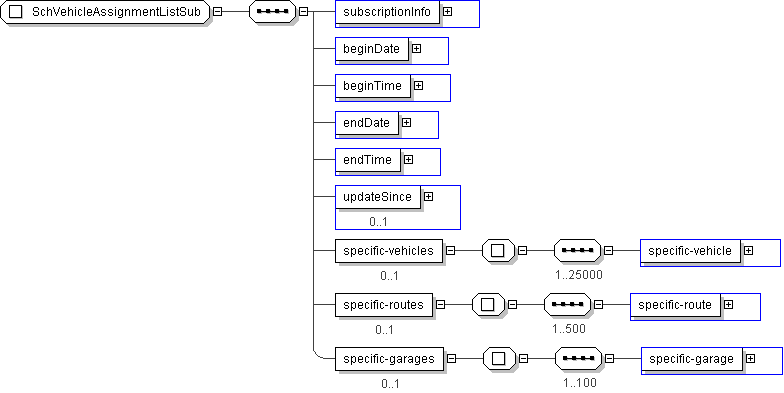

XML Instance Representation

<...>

<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]

<beginDate> CPT-Date </beginDate> [1]

<beginTime> CPT-Time </beginTime> [1]

<endDate> CPT-Date </endDate> [1]

<endTime> CPT-Time </endTime> [1]

<updateSince> CPT-DateTime </updateSince> [0..1]

<specific-vehicles> [0..1]
Start Sequence [1..25000]

<specific-vehicle> CPTVehicleIden </specific-vehicle> [1]

End Sequence
</specific-vehicles>

<specific-routes> [0..1]
Start Sequence [1..500]

<specific-route> SCHRouteIden </specific-route> [1]

End Sequence
</specific-routes>

<specific-garages> [0..1]
Start Sequence [1..100]

<specific-garage> CPTTransitFacilityIden </specific-garage> [1]

End Sequence
</specific-garages>

</...>

Schema Component Representation

<xs:complexType name="SchVehicleAssignmentListSub">

<xs:sequence>

<xs:element name="subscriptionInfo" type=" CPTSubscriptionHeader "/>

<xs:element name="beginDate" type=" CPT-Date "/>

<xs:element name="beginTime" type=" CPT-Time "/>

<xs:element name="endDate" type=" CPT-Date "/>

<xs:element name="endTime" type=" CPT-Time "/>

<xs:element name="updateSince" type=" CPT-DateTime " minOccurs="0"/>

<xs:element name="specific-vehicles" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="25000">

<xs:element name="specific-vehicle" type=" CPTVehicleIden "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="specific-routes" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="500">

<xs:element name="specific-route" type=" SCHRouteIden "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="specific-garages" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="100">

<xs:element name="specific-garage" type=" CPTTransitFacilityIden "/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>
