Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

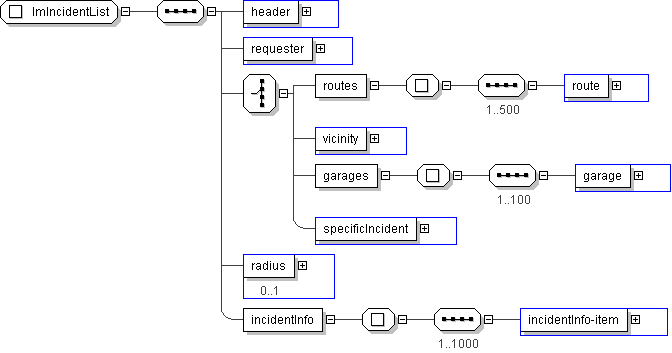

Name	ImIncidentList
Used by (from the same schema document)	Element imIncidentList
Abstract	no

XML Instance Representation

<...>

<header> CPTSubscriptionHeader </header> [1]

<requester> CPTEmployeeIden </requester> [1]

Start Choice [1]

<routes> [1]
Start Sequence [1..500]

<route> SCHRouteIden </route> [1]

End Sequence
</routes>

<vicinity> SPPoint </vicinity> [1]

<garages> [1]
Start Sequence [1..100]

<garage> CPTTransitFacilityIden </garage> [1]

End Sequence
</garages>

<specificIncident> IMIncidentIden </specificIncident> [1]

End Choice

<radius> lrms:Distance </radius> [0..1]

<incidentInfo> [1]
Start Sequence [1..1000]

<incidentInfo-item> IMIncidentInfo </incidentInfo-item> [1]

End Sequence
</incidentInfo>

</...>

Schema Component Representation

<xs:complexType name="ImIncidentList">

<xs:sequence>

<xs:element name="header" type=" CPTSubscriptionHeader "/>

<xs:element name="requester" type=" CPTEmployeeIden "/>

<xs:choice>

<xs:element name="routes">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="500">

<xs:element name="route" type=" SCHRouteIden "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="vicinity" type=" SPPoint "/>

<xs:element name="garages">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="100">

<xs:element name="garage" type=" CPTTransitFacilityIden "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="specificIncident" type=" IMIncidentIden "/>

</xs:choice>

<xs:element name="radius" type=" lrms:Distance " minOccurs="0"/>

<xs:element name="incidentInfo">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="1000">

<xs:element name="incidentInfo-item" type=" IMIncidentInfo "/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>
