Documentation for ATIS-Draft-03-00-79

Element: imIncidentList

[Table of contents]

Name imIncidentList
Type ImIncidentList
Nillable no
Abstract no

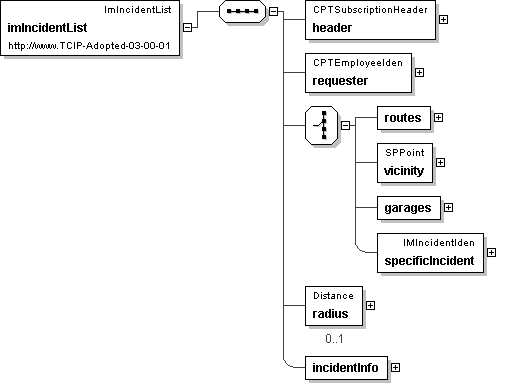

Logical Diagram
h-1421071056 h1272129017 h-1124933139 h-1902957252 h-2089937943 h-152184057 h-1138378955 h573499651
XML Instance Representation
<imIncidentList>
<header> CPTSubscriptionHeader </header> [1]
<requester> CPTEmployeeIden </requester> [1]
Start Choice [1]
<routes> [1]
Start Sequence [1..500]
<route> SCHRouteIden </route> [1]
End Sequence
</routes>
<vicinity> SPPoint </vicinity> [1]
<garages> [1]
Start Sequence [1..100]
<garage> CPTTransitFacilityIden </garage> [1]
End Sequence
</garages>
<specificIncident> IMIncidentIden </specificIncident> [1]
End Choice
<radius> lrms:Distance </radius> [0..1]
<incidentInfo> [1]
Start Sequence [1..1000]
<incidentInfo-item> IMIncidentInfo </incidentInfo-item> [1]
End Sequence
</incidentInfo>
</imIncidentList>

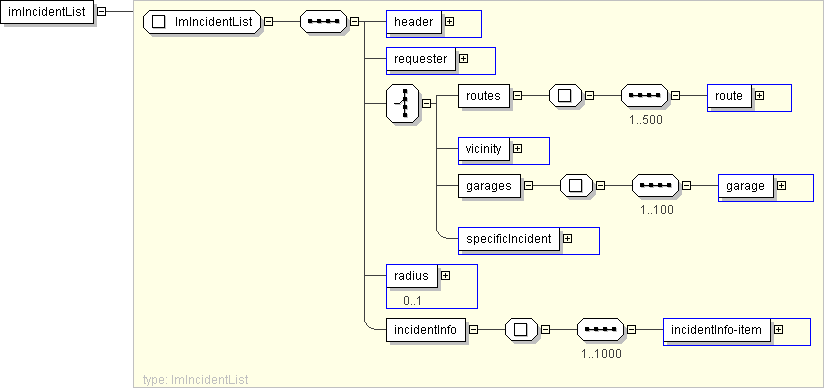

Diagram
h-527207252 h-1303246092 h-963684166 h2081204526 h2133900120 h-1971041825 h1439634298 h-1971032183
Schema Component Representation
<xs:element name="imIncidentList" type=" ImIncidentList "/>
