Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	IMIncidentInfo
Used by (from the same schema document)	Complex Type ImIncidentHistory , Complex Type ImIncidentList
Abstract	no

XML Instance Representation

<...>

<incident> IMIncidentIden </incident> [1]

<metadata> CPTRowMetaData </metadata> [0..1]

<subsumedIncidents> [0..1]
Start Sequence [1..100]

<subsumedIncident> IMIncidentIden </subsumedIncident> [1]

End Sequence
</subsumedIncidents>

<incidentDescription> IMIncident </incidentDescription> [0..1]

<trafficImpact> IMTrafficImpact </trafficImpact> [0..1]

<incidentClosed> CPT-Boolean </incidentClosed> [1]

<localIMIncidentInfo> local:IMIncidentInfo </localIMIncidentInfo> [0..1]

</...>

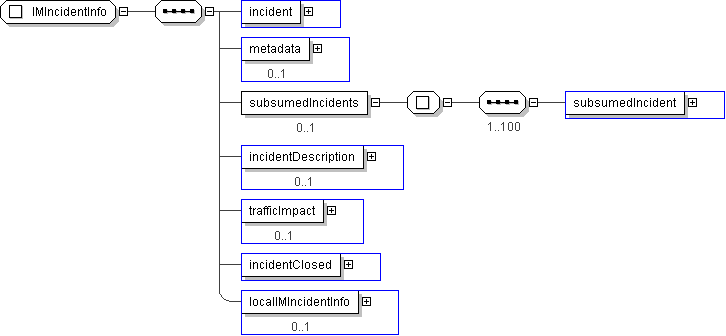

Schema Component Representation

<xs:complexType name="IMIncidentInfo">

<xs:sequence>

<xs:element name="incident" type=" IMIncidentIden "/>

<xs:element name="metadata" type=" CPTRowMetaData " minOccurs="0"/>

<xs:element name="subsumedIncidents" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="100">

<xs:element name="subsumedIncident" type=" IMIncidentIden "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="incidentDescription" type=" IMIncident " minOccurs="0"/>

<xs:element name="trafficImpact" type=" IMTrafficImpact " minOccurs="0"/>

<xs:element name="incidentClosed" type=" CPT-Boolean "/>

<xs:element name="localIMIncidentInfo" type=" local:IMIncidentInfo " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
