Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	IMTrafficImpact
Used by (from the same schema document)	Complex Type ImIncidentUpdate , Complex Type ImInitialIncidentReport , Complex Type IMIncidentInfo
Abstract	no

XML Instance Representation

<...>

<roads-affected> [1]
Start Sequence [1..100]

<roads-affected-item> lrms:StreetInfo </roads-affected-item> [1]

End Sequence
</roads-affected>

<lane-blocked-count> tmdd:Event-lanes-total-affected </lane-blocked-count> [1]

<time-est-duration> tmdd:Event-timeline-estimated-duration </time-est-duration> [1]

<clear-date-time> CPT-DateTime </clear-date-time> [0..1]

<lane-status> [0..1]
Start Sequence [1..100]

<lane-statu> tmdd:Link-status </lane-statu> [1]

End Sequence
</lane-status>

<localIMTrafficImpact> local:IMTrafficImpact </localIMTrafficImpact> [0..1]

</...>

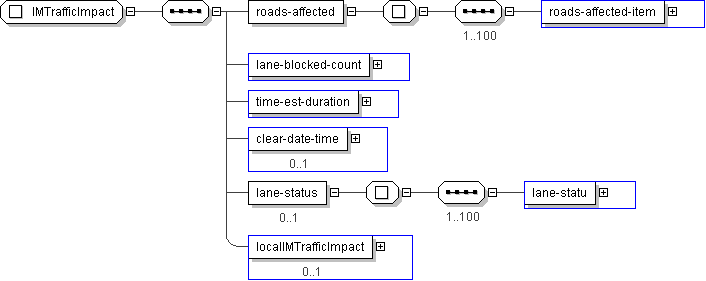

Schema Component Representation

<xs:complexType name="IMTrafficImpact">

<xs:sequence>

<xs:element name="roads-affected">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="100">

<xs:element name="roads-affected-item" type=" lrms:StreetInfo "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="lane-blocked-count" type=" tmdd:Event-lanes-total-affected "/>

<xs:element name="time-est-duration" type=" tmdd:Event-timeline-estimated-duration "/>

<xs:element name="clear-date-time" type=" CPT-DateTime " minOccurs="0"/>

<xs:element name="lane-status" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="100">

<xs:element name="lane-statu" type=" tmdd:Link-status "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="localIMTrafficImpact" type=" local:IMTrafficImpact " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
