Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	ObLocation
Used by (from the same schema document)	Element obLocation
Abstract	no

XML Instance Representation

<...>

<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]

<requestIdentifier> CPT-RequestIdentifier </requestIdentifier> [1]

<requesterID> OB-MID </requesterID> [1]

<reason> OB-LocationReportReason </reason> [1]

<trip> SCHTripIden </trip> [0..1]

<time-reported> CPT-DateTime </time-reported> [1]

<latitude> lrms:Latitude </latitude> [1]

<longitude> lrms:Longitude </longitude> [1]

<direction> lrms:Angle </direction> [1]

<speed> OB-J1587-VelocityVectorSpeed </speed> [1]

<data-quality> SPDataQuality </data-quality> [0..1]

<timepoint> SCHTimepointIden </timepoint> [0..1]

<stoppoint> CPTStoppointIden </stoppoint> [0..1]

<event-id> SCH-ActivationID </event-id> [0..1]

<passengers-aboard> OB-J1587-PassengerCounterPatronCount </passengers-aboard> [0..1]

<on-route> CPT-Boolean </on-route> [1]

<schedule-status> CPT-Duration </schedule-status> [0..1]

<layover-location> lrms:GeoLocation </layover-location> [0..1]

<layover-end> CPT-DateTime </layover-end> [0..1]

<odometer-reading> CPT-GenericCounter </odometer-reading> [0..1]

</...>

Schema Component Representation

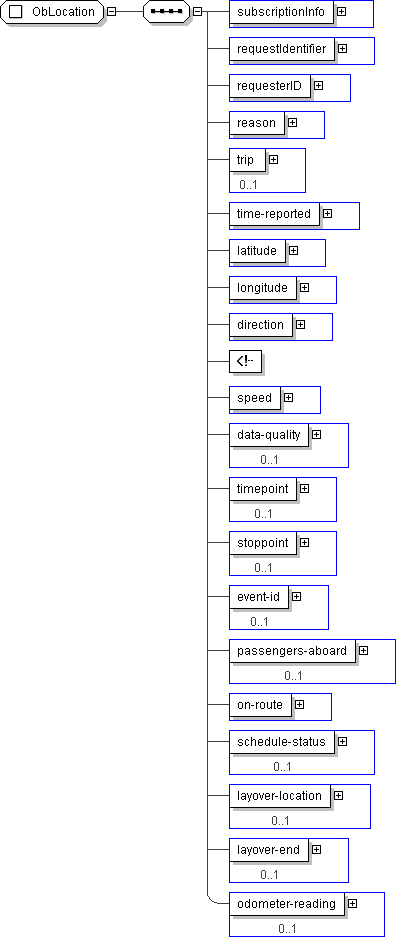

<xs:complexType name="ObLocation">

<xs:sequence>

<xs:element name="subscriptionInfo" type=" CPTSubscriptionHeader "/>

<xs:element name="requestIdentifier" type=" CPT-RequestIdentifier "/>

<xs:element name="requesterID" type=" OB-MID "/>

<xs:element name="reason" type=" OB-LocationReportReason "/>

<xs:element name="trip" type=" SCHTripIden " minOccurs="0"/>

<xs:element name="time-reported" type=" CPT-DateTime "/>

<xs:element name="latitude" type=" lrms:Latitude "/>

<xs:element name="longitude" type=" lrms:Longitude "/>

<xs:element name="direction" type=" lrms:Angle "/>

<-- direction of travel [deg] -->

<xs:element name="speed" type=" OB-J1587-VelocityVectorSpeed "/>

<xs:element name="data-quality" type=" SPDataQuality " minOccurs="0"/>

<xs:element name="timepoint" type=" SCHTimepointIden " minOccurs="0"/>

<xs:element name="stoppoint" type=" CPTStoppointIden " minOccurs="0"/>

<xs:element name="event-id" type=" SCH-ActivationID " minOccurs="0"/>

<xs:element name="passengers-aboard" type=" OB-J1587-PassengerCounterPatronCount " minOccurs="0"/>

<xs:element name="on-route" type=" CPT-Boolean "/>

<xs:element name="schedule-status" type=" CPT-Duration " minOccurs="0"/>

<xs:element name="layover-location" type=" lrms:GeoLocation " minOccurs="0"/>

<xs:element name="layover-end" type=" CPT-DateTime " minOccurs="0"/>

<xs:element name="odometer-reading" type=" CPT-GenericCounter " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
