Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	OB-LocationReportReason
Used by (from the same schema document)	Complex Type ObLocation
Content	Union of following types: Locally defined type: Base XSD Type: unsignedInt 1 <= value <= 12 Locally defined type: Base XSD Type: string value comes from list: {'initialReport'\|'timepoint'\|'arrivestop'\|'departstop'\|'timeout'\|'event location'\|'starttrip'\|'endtrip'\|'adherence on sched'\|'adherence off sched'\|'adherence on route'\|'adherence off route'} Locally defined type: Base XSD Type: unsignedInt 128 <= value <= 255 Locally defined type: Base XSD Type: string value comes from list: {'insert-local-values-here'}
Application Data	initialReport (1) timepoint (2) arrivestop (3) departstop (4) timeout (5) event location (6) starttrip (7) endtrip (8) adherence on sched (9) adherence off sched (10) adherence on route (11) adherence off route (12) -- values 13-127 reserved -- values 128-255 are for locally defined reasons

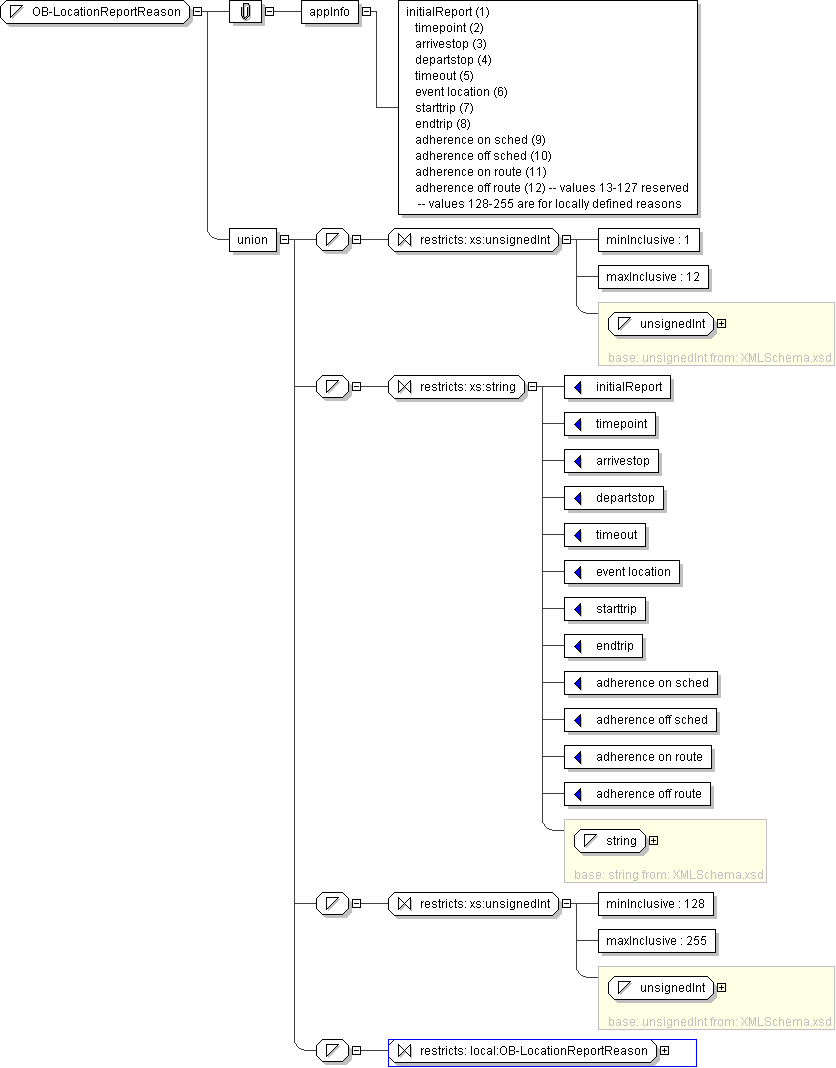

Schema Component Representation

<xs:simpleType name="OB-LocationReportReason">

<xs:union>

<xs:simpleType>

<xs:restriction base=" xs:unsignedInt ">

<xs:minInclusive value="1"/>

<xs:maxInclusive value="12"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" xs:string ">

<xs:enumeration value="initialReport"/>

<xs:enumeration value="timepoint"/>

<xs:enumeration value="arrivestop"/>

<xs:enumeration value="departstop"/>

<xs:enumeration value="timeout"/>

<xs:enumeration value="event location"/>

<xs:enumeration value="starttrip"/>

<xs:enumeration value="endtrip"/>

<xs:enumeration value="adherence on sched"/>

<xs:enumeration value="adherence off sched"/>

<xs:enumeration value="adherence on route"/>

<xs:enumeration value="adherence off route"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" xs:unsignedInt ">

<xs:minInclusive value="128"/>

<xs:maxInclusive value="255"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" local:OB-LocationReportReason "/>

</xs:simpleType>

</xs:union>

</xs:simpleType>
