Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

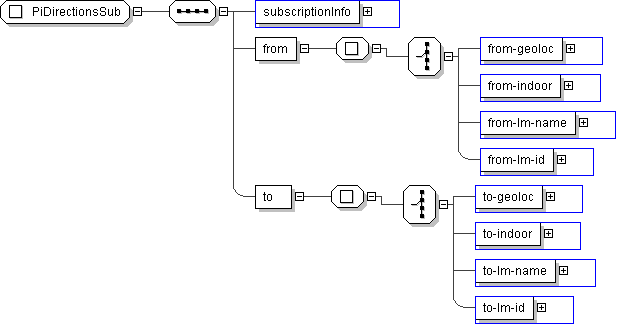

Name	PiDirectionsSub
Used by (from the same schema document)	Element piDirectionsSub
Abstract	no

XML Instance Representation

<...>

<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]

<from> [1]
Start Choice [1]

<from-geoloc> lrms:GeoLocation </from-geoloc> [1]

<from-indoor> SPInteriorLocation </from-indoor> [1]

<from-lm-name> SP-LandmarkName </from-lm-name> [1]

<from-lm-id> PI-LandmarkID </from-lm-id> [1]

End Choice
</from>

<to> [1]
Start Choice [1]

<to-geoloc> lrms:GeoLocation </to-geoloc> [1]

<to-indoor> SPInteriorLocation </to-indoor> [1]

<to-lm-name> SP-LandmarkName </to-lm-name> [1]

<to-lm-id> PI-LandmarkID </to-lm-id> [1]

End Choice
</to>

</...>

Schema Component Representation

<xs:complexType name="PiDirectionsSub">

<xs:sequence>

<xs:element name="subscriptionInfo" type=" CPTSubscriptionHeader "/>

<xs:element name="from">

<xs:complexType>

<xs:choice>

<xs:element name="from-geoloc" type=" lrms:GeoLocation "/>

<xs:element name="from-indoor" type=" SPInteriorLocation "/>

<xs:element name="from-lm-name" type=" SP-LandmarkName "/>

<xs:element name="from-lm-id" type=" PI-LandmarkID "/>

</xs:choice>

</xs:complexType>

</xs:element>

<xs:element name="to">

<xs:complexType>

<xs:choice>

<xs:element name="to-geoloc" type=" lrms:GeoLocation "/>

<xs:element name="to-indoor" type=" SPInteriorLocation "/>

<xs:element name="to-lm-name" type=" SP-LandmarkName "/>

<xs:element name="to-lm-id" type=" PI-LandmarkID "/>

</xs:choice>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>
