Documentation for ATIS-Draft-03-00-79

Element: piDirectionsSub

[Table of contents]

Name piDirectionsSub
Type PiDirectionsSub
Nillable no
Abstract no

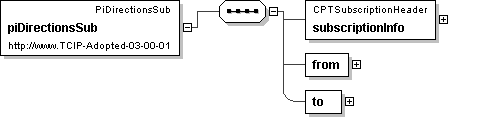

Logical Diagram
h-841091506 h-573591795 h575939230
XML Instance Representation
<piDirectionsSub>
<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]
<from> [1]
Start Choice [1]
<from-geoloc> lrms:GeoLocation </from-geoloc> [1]
<from-indoor> SPInteriorLocation </from-indoor> [1]
<from-lm-name> SP-LandmarkName </from-lm-name> [1]
<from-lm-id> PI-LandmarkID </from-lm-id> [1]
End Choice
</from>
<to> [1]
Start Choice [1]
<to-geoloc> lrms:GeoLocation </to-geoloc> [1]
<to-indoor> SPInteriorLocation </to-indoor> [1]
<to-lm-name> SP-LandmarkName </to-lm-name> [1]
<to-lm-id> PI-LandmarkID </to-lm-id> [1]
End Choice
</to>
</piDirectionsSub>

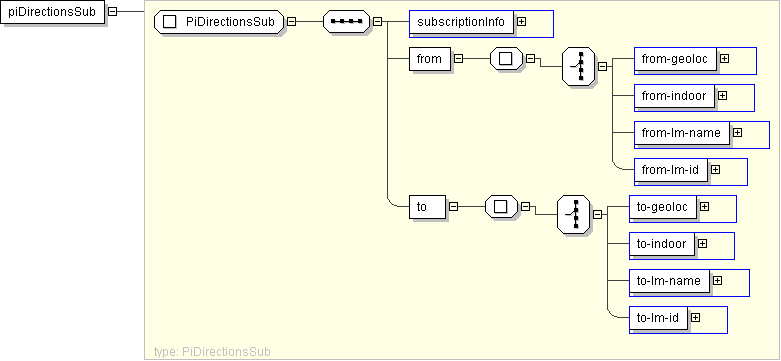

Diagram
h-527207252 h-542031743 h-1551571161 h-72524690 h-841321854 h-542031743 h-1551571161 h-72524690 h-841321854
Schema Component Representation
<xs:element name="piDirectionsSub" type=" PiDirectionsSub "/>
