Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

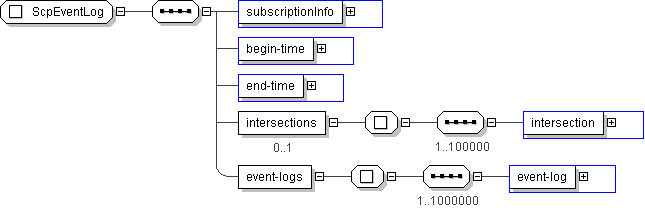

Name	ScpEventLog
Used by (from the same schema document)	Element scpEventLog
Abstract	no

XML Instance Representation

<...>

<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]

<begin-time> CPT-DateTime </begin-time> [1]

<end-time> CPT-DateTime </end-time> [1]

<intersections> [0..1]
Start Sequence [1..100000]

<intersection> CPTIntersectionIden </intersection> [1]

End Sequence
</intersections>

<event-logs> [1]
Start Sequence [1..1000000]

<event-log> TSPEventLogEntry </event-log> [1]

End Sequence
</event-logs>

</...>

Schema Component Representation

<xs:complexType name="ScpEventLog">

<xs:sequence>

<xs:element name="subscriptionInfo" type=" CPTSubscriptionHeader "/>

<xs:element name="begin-time" type=" CPT-DateTime "/>

<xs:element name="end-time" type=" CPT-DateTime "/>

<xs:element name="intersections" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="100000">

<xs:element name="intersection" type=" CPTIntersectionIden "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="event-logs">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="1000000">

<xs:element name="event-log" type=" TSPEventLogEntry "/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>
