Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

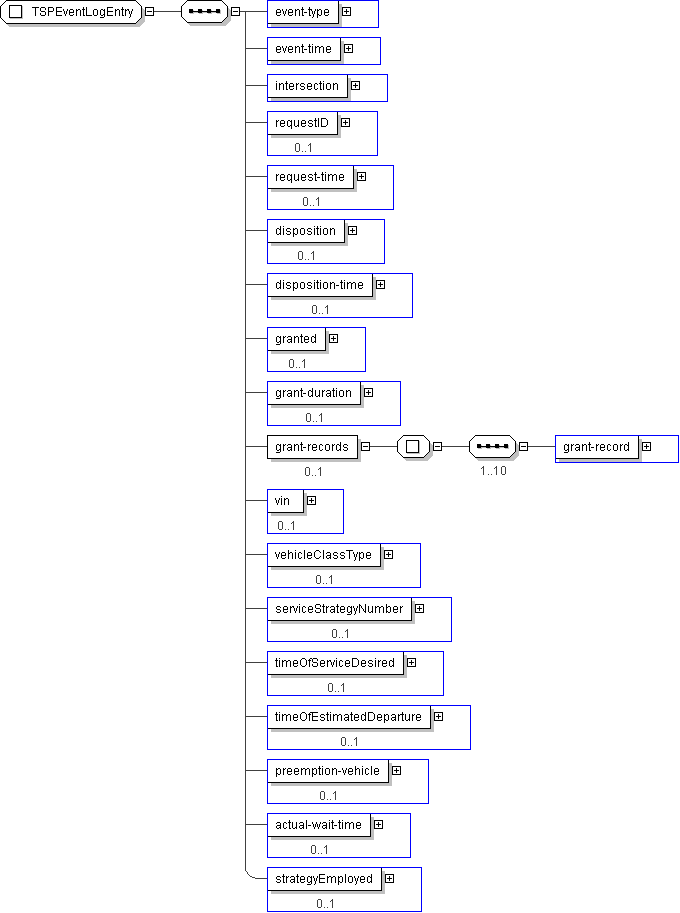

Name	TSPEventLogEntry
Used by (from the same schema document)	Complex Type ScpEventLog , Complex Type TspEventLogUnload
Abstract	no

XML Instance Representation

<...>

<event-type> SCP-LoggedEventType </event-type> [1]

<event-time> CPT-DateTime </event-time> [1]

<intersection> CPTIntersectionIden </intersection> [1]

<requestID> SCP-PriorityRequestID </requestID> [0..1]

<request-time> CPT-DateTime </request-time> [0..1]

<disposition> SCP-StatusCodeForPRG </disposition> [0..1]

<disposition-time> CPT-DateTime </disposition-time> [0..1]

<granted> CPT-Boolean </granted> [0..1]

<grant-duration> SCP-TimeInterval </grant-duration> [0..1]

<grant-records> [0..1]
Start Sequence [1..10]

<grant-record> TSPGrantRecord </grant-record> [1]

End Sequence
</grant-records>

<vin> CPT-VIN </vin> [0..1]

<vehicleClassType> SCP-VehicleClassType </vehicleClassType> [0..1]

<serviceStrategyNumber> SCP-PriorityStrategyNumber </serviceStrategyNumber> [0..1]

<timeOfServiceDesired> SCP-TimeInterval </timeOfServiceDesired> [0..1]

<timeOfEstimatedDeparture> SCP-TimeInterval </timeOfEstimatedDeparture> [0..1]

<preemption-vehicle> CPT-VIN </preemption-vehicle> [0..1]

<actual-wait-time> SCP-TimeInterval </actual-wait-time> [0..1]

<strategyEmployed> SCP-PriorityStrategyNumber </strategyEmployed> [0..1]

</...>

Schema Component Representation

<xs:complexType name="TSPEventLogEntry">

<xs:sequence>

<xs:element name="event-type" type=" SCP-LoggedEventType "/>

<xs:element name="event-time" type=" CPT-DateTime "/>

<xs:element name="intersection" type=" CPTIntersectionIden "/>

<xs:element name="requestID" type=" SCP-PriorityRequestID " minOccurs="0"/>

<xs:element name="request-time" type=" CPT-DateTime " minOccurs="0"/>

<xs:element name="disposition" type=" SCP-StatusCodeForPRG " minOccurs="0"/>

<xs:element name="disposition-time" type=" CPT-DateTime " minOccurs="0"/>

<xs:element name="granted" type=" CPT-Boolean " minOccurs="0"/>

<xs:element name="grant-duration" type=" SCP-TimeInterval " minOccurs="0"/>

<xs:element name="grant-records" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="10">

<xs:element name="grant-record" type=" TSPGrantRecord "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="vin" type=" CPT-VIN " minOccurs="0"/>

<xs:element name="vehicleClassType" type=" SCP-VehicleClassType " minOccurs="0"/>

<xs:element name="serviceStrategyNumber" type=" SCP-PriorityStrategyNumber " minOccurs="0"/>

<xs:element name="timeOfServiceDesired" type=" SCP-TimeInterval " minOccurs="0"/>

<xs:element name="timeOfEstimatedDeparture" type=" SCP-TimeInterval " minOccurs="0"/>

<xs:element name="preemption-vehicle" type=" CPT-VIN " minOccurs="0"/>

<xs:element name="actual-wait-time" type=" SCP-TimeInterval " minOccurs="0"/>

<xs:element name="strategyEmployed" type=" SCP-PriorityStrategyNumber " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
