Documentation for ATIS-Draft-03-00-79

Element: scpEventLog

[Table of contents]

Name scpEventLog
Type ScpEventLog
Nillable no
Abstract no

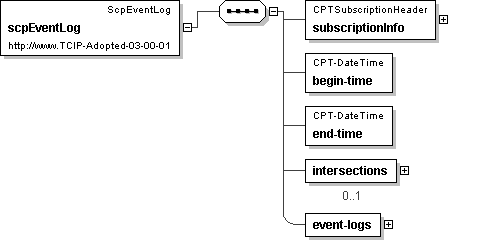

Logical Diagram
h-841091506 h151531271 h1682130469
XML Instance Representation
<scpEventLog>
<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]
<begin-time> CPT-DateTime </begin-time> [1]
<end-time> CPT-DateTime </end-time> [1]
<intersections> [0..1]
Start Sequence [1..100000]
<intersection> CPTIntersectionIden </intersection> [1]
End Sequence
</intersections>
<event-logs> [1]
Start Sequence [1..1000000]
<event-log> TSPEventLogEntry </event-log> [1]
End Sequence
</event-logs>
</scpEventLog>

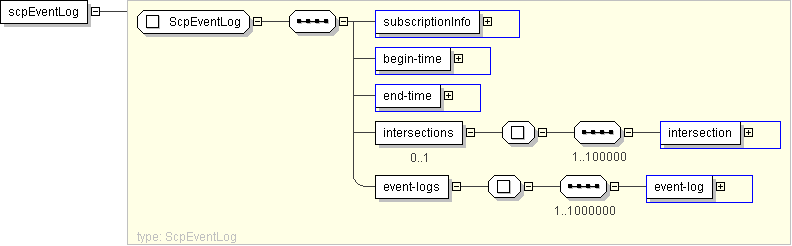

Diagram
h-527207252 h1272267302 h1272267302 h-1285224369 h-1750213508
Schema Component Representation
<xs:element name="scpEventLog" type=" ScpEventLog "/>
