Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

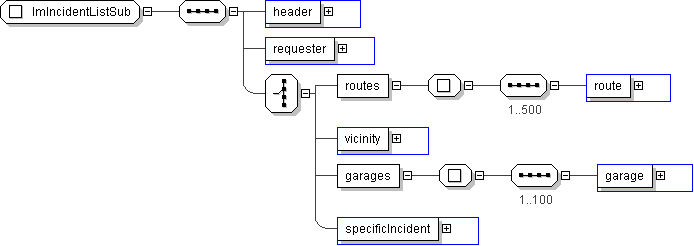

Name	ImIncidentListSub
Used by (from the same schema document)	Element imIncidentListSub
Abstract	no

XML Instance Representation

<...>

<header> CPTSubscriptionHeader </header> [1]

<requester> CPTEmployeeIden </requester> [1]

Start Choice [1]

<routes> [1]
Start Sequence [1..500]

<route> SCHRouteIden </route> [1]

End Sequence
</routes>

<vicinity> SPPoint </vicinity> [1]

<garages> [1]
Start Sequence [1..100]

<garage> CPTTransitFacilityIden </garage> [1]

End Sequence
</garages>

<specificIncident> IMIncidentIden </specificIncident> [1]

End Choice
</...>

Schema Component Representation

<xs:complexType name="ImIncidentListSub">

<xs:sequence>

<xs:element name="header" type=" CPTSubscriptionHeader "/>

<xs:element name="requester" type=" CPTEmployeeIden "/>

<xs:choice>

<xs:element name="routes">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="500">

<xs:element name="route" type=" SCHRouteIden "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="vicinity" type=" SPPoint "/>

<xs:element name="garages">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="100">

<xs:element name="garage" type=" CPTTransitFacilityIden "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="specificIncident" type=" IMIncidentIden "/>

</xs:choice>

</xs:sequence>

</xs:complexType>
