Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

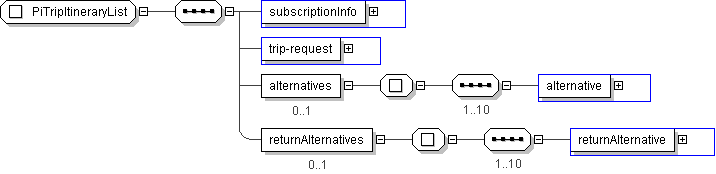

Name	PiTripItineraryList
Used by (from the same schema document)	Element piTripItineraryList
Abstract	no

XML Instance Representation

<...>

<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]

<trip-request> PITripRequest </trip-request> [1]

<alternatives> [0..1]
Start Sequence [1..10]

<alternative> atis:Route </alternative> [1]

End Sequence
</alternatives>

<returnAlternatives> [0..1]
Start Sequence [1..10]

<returnAlternative> atis:Route </returnAlternative> [1]

End Sequence
</returnAlternatives>

</...>

Schema Component Representation

<xs:complexType name="PiTripItineraryList">

<xs:sequence>

<xs:element name="subscriptionInfo" type=" CPTSubscriptionHeader "/>

<xs:element name="trip-request" type=" PITripRequest "/>

<xs:element name="alternatives" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="10">

<xs:element name="alternative" type=" atis:Route "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="returnAlternatives" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="10">

<xs:element name="returnAlternative" type=" atis:Route "/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>
