Documentation for ATIS-Draft-03-00-79

Element: piTripItineraryList

[Table of contents]

Name piTripItineraryList
Type PiTripItineraryList
Nillable no
Abstract no

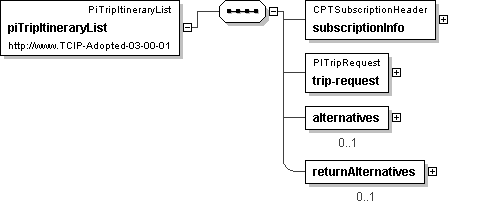

Logical Diagram
h-841091506 h-522593974 h384783049 h-1719892519
XML Instance Representation
<piTripItineraryList>
<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]
<trip-request> PITripRequest </trip-request> [1]
<alternatives> [0..1]
Start Sequence [1..10]
<alternative> atis:Route </alternative> [1]
End Sequence
</alternatives>
<returnAlternatives> [0..1]
Start Sequence [1..10]
<returnAlternative> atis:Route </returnAlternative> [1]
End Sequence
</returnAlternatives>
</piTripItineraryList>

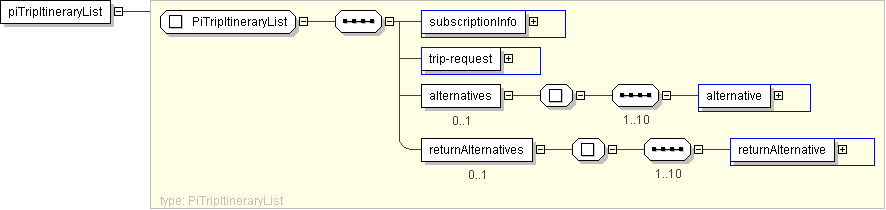

Diagram
h-527207252 h1820991148 h-1110646556 h-1110646556
Schema Component Representation
<xs:element name="piTripItineraryList" type=" PiTripItineraryList "/>
