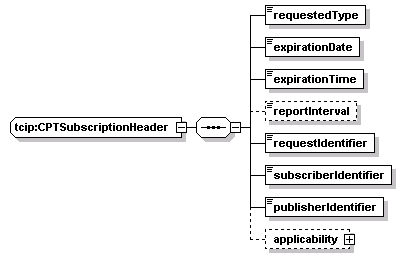

complexType tcip:CPTSubscriptionHeader
diagram
namespace http://www.TCIP-Adopted-03-00-01
children requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
used by
elements tcip:ImIncidentListSub/header tcip:ImIncidentList/header tcip:PiAccessibilityList/header tcip:PiAccessibilityListSub/header tcip:PiAnnouncementsList/header tcip:PiAnnouncementsListSub/header tcip:PiGeoZoneList/header tcip:PiGeoZoneListSub/header tcip:CcTravelerRequestLogSub/header tcip:CcTravelerRequestLog/header tcip:PiLocationMap/header tcip:PiLocationMapSub/header tcip:SpGIS/header tcip:SpGISSub/header tcip:PiServiceListSub/header tcip:PiServiceList/header tcip:PiRouteListSub/header tcip:PiRouteList/header tcip:CptSubErrorNotice/subscription tcip:FcRevenueDataSub/subscription-info tcip:FcRevenueData/subscription-info tcip:CcVideoImagesSub/subscription-info tcip:CcVideoImages/subscription-info tcip:CcFleetMechanicalData/subscription-info tcip:CcOperatingDataSub/subscription-info tcip:CcOperatingData/subscription-info tcip:CcFleetPassengerDataSub/subscription-info tcip:CcFleetMechanicalDataSub/subscription-info tcip:CcFleetPassengerData/subscription-info tcip:PiLandmarksListSub/subscriptionHeader tcip:CcLocationReportSub/subscriptionHeader tcip:PiServiceBulletinsListSub/subscriptionHeader tcip:PiServiceBulletinsList/subscriptionHeader tcip:PiAgencyFiles/subscriptionHeader tcip:PiAgencyFilesSub/subscriptionHeader tcip:PiAgencyList/subscriptionHeader tcip:PiAgencyListSub/subscriptionHeader tcip:CptTransitFacilitiesSub/subscriptionHeader tcip:CptTransitFacilities/subscriptionHeader tcip:PiMailingListSub/subscriptionHeader tcip:PiLandmarksList/subscriptionHeader tcip:PiProfile/subscriptionHeader tcip:PiProfileSub/subscriptionHeader tcip:PiFoundItemsSub/subscriptionHeader tcip:PiFoundItems/subscriptionHeader tcip:PiMailingList/subscriptionHeader tcip:PiServiceStatus/subscriptionInfo tcip:SchBlockSubsetsSub/subscriptionInfo tcip:SchBlockSubsets/subscriptionInfo tcip:PiStopPointETA/subscriptionInfo tcip:PiStopPointETASub/subscriptionInfo tcip:SchBlockScheduleListSub/subscriptionInfo tcip:SchBlockScheduleList/subscriptionInfo tcip:SchActualRunningTimesSub/subscriptionInfo tcip:SchActualRunningTimes/subscriptionInfo tcip:PiStoppointParking/subscriptionInfo tcip:PiStoppointParkingSub/subscriptionInfo tcip:PiServiceStatusSub/subscriptionInfo tcip:PiTextTimetableSub/subscriptionInfo tcip:PiTextTimetable/subscriptionInfo tcip:PiTripItineraryList/subscriptionInfo tcip:PiTripItineraryListSub/subscriptionInfo tcip:SchTimepointList/subscriptionInfo tcip:SchTimepointListSub/subscriptionInfo tcip:SchTripDetailList/subscriptionInfo tcip:SchTripDetailListSub/subscriptionInfo tcip:SchUnassignedOperatorList/subscriptionInfo tcip:SchUnassignedOperatorListSub/subscriptionInfo tcip:SchUnassignedVehicleList/subscriptionInfo tcip:SchUnassignedVehicleListSub/subscriptionInfo tcip:SchVehicleAssignmentList/subscriptionInfo tcip:SchVehicleAssignmentListSub/subscriptionInfo tcip:ScpEventLog/subscriptionInfo tcip:ScpEventLogSub/subscriptionInfo tcip:SpLocationConversion/subscriptionInfo tcip:SpLocationConversionSub/subscriptionInfo tcip:SpMapImage/subscriptionInfo tcip:SpMapImageSub/subscriptionInfo tcip:SpRouteGeoTrace/subscriptionInfo tcip:SpRouteGeoTraceSub/subscriptionInfo tcip:TspPRGInputsCC/subscriptionInfo tcip:TspPRGInputsCCSub/subscriptionInfo tcip:TspPRGInputsPTV/subscriptionInfo tcip:SchCalendar/subscriptionInfo tcip:SchCalendarSub/subscriptionInfo tcip:SchMasterScheduleVersion/subscriptionInfo tcip:SchMasterScheduleVersionSub/subscriptionInfo tcip:SchOperatorAssignmentList/subscriptionInfo tcip:SchOperatorAssignmentListSub/subscriptionInfo tcip:SchPatternList/subscriptionInfo tcip:SchPatternListSub/subscriptionInfo tcip:SchPullInList/subscriptionInfo tcip:SchPullInListSub/subscriptionInfo tcip:SchPullOutList/subscriptionInfo tcip:SchPullOutListSub/subscriptionInfo tcip:SchRosterList/subscriptionInfo tcip:SchRosterListSub/subscriptionInfo tcip:SchRouteSchedule/subscriptionInfo tcip:SchRouteScheduleSub/subscriptionInfo tcip:SchRunningTimeList/subscriptionInfo tcip:SchRunningTimeListSub/subscriptionInfo tcip:SchRunScheduleList/subscriptionInfo tcip:SchRunScheduleListSub/subscriptionInfo tcip:SchStopServiceList/subscriptionInfo tcip:SchStopServiceListSub/subscriptionInfo tcip:CptTransferClusterListSub/subscriptionInfo tcip:CptTransferClusterList/subscriptionInfo tcip:CptStoppointSubsetsSub/subscriptionInfo tcip:CptStoppointSubsets/subscriptionInfo tcip:CptStoppointListSub/subscriptionInfo tcip:CptStoppointList/subscriptionInfo tcip:CptShelterListSub/subscriptionInfo tcip:CptShelterList/subscriptionInfo tcip:CptFleetSubsetsSub/subscriptionInfo tcip:CptFleetSubsets/subscriptionInfo tcip:CptEmployeeListSub/subscriptionInfo tcip:CptEmployeeList/subscriptionInfo tcip:CcVideoFeedSub/subscriptionInfo tcip:CcVideoFeed/subscriptionInfo tcip:CcPTVehicleParameterSub/subscriptionInfo tcip:CcPTVehicleParameter/subscriptionInfo tcip:CcPTVehicleAlarmSub/subscriptionInfo tcip:CcPTVehicleAlarm/subscriptionInfo tcip:CcPTVAdherenceSub/subscriptionInfo tcip:CcPTVAdherence/subscriptionInfo tcip:CcPollParametersSub/subscriptionInfo tcip:CcPollParameters/subscriptionInfo tcip:CcFleetLocationSub/subscriptionInfo tcip:CcFleetLocation/subscriptionInfo tcip:CcFleetHealthAlarmSub/subscriptionInfo tcip:CcFleetHealthAlarm/subscriptionInfo tcip:CcDGPSSub/subscriptionInfo tcip:CcDGPS/subscriptionInfo tcip:CcAdherencePerformanceSub/subscriptionInfo tcip:CcAdherencePerformance/subscriptionInfo tcip:PiNearestStopListSub/subscriptionInfo tcip:PiNearestStopList/subscriptionInfo tcip:PiItineraryMapSub/subscriptionInfo tcip:PiItineraryMap/subscriptionInfo tcip:PiItineraryFareSub/subscriptionInfo tcip:PiItineraryFare/subscriptionInfo tcip:PiDirectionsSub/subscriptionInfo tcip:PiDirections/subscriptionInfo tcip:PiAmenitiesListSub/subscriptionInfo tcip:PiAmenitiesList/subscriptionInfo tcip:ObWLANStatusSub/subscriptionInfo tcip:ObSignonSub/subscriptionInfo tcip:ObSignon/subscriptionInfo tcip:ObPassengerCountSub/subscriptionInfo tcip:ObPassengerCount/subscriptionInfo tcip:ObLocationSub/subscriptionInfo tcip:ObLocation/subscriptionInfo tcip:ImIncidentHistorySub/subscriptionInfo tcip:ImIncidentHistory/subscriptionInfo tcip:FcPassengerDataSub/subscriptionInfo tcip:FcPassengerData/subscriptionInfo tcip:FcFareZonesSub/subscriptionInfo tcip:FcFareZones/subscriptionInfo tcip:FcFareHealthSub/subscriptionInfo tcip:FcFareHealth/subscriptionInfo tcip:FcEquipmentSubsetsSub/subscriptionInfo tcip:FcEquipmentSubsets/subscriptionInfo tcip:CptWatchdogTimerSub/subscriptionInfo tcip:CptWatchdogTimer/subscriptionInfo tcip:CptVehicleInventoryListSub/subscriptionInfo tcip:CptVehicleInventoryList/subscriptionInfo
source <xs:complexType name="CPTSubscriptionHeader">
  <xs:sequence>
    <xs:element name="requestedType" type="CPT-SubscriptionType"/>
    <xs:element name="expirationDate" type="CPT-Date"/>
    <!-- for the subscription -->
    <xs:element name="expirationTime" type="CPT-Time"/>
    <!-- for the subscription -->
    <xs:element name="reportInterval" type="CPT-Duration" minOccurs="0"/>
    <xs:element name="requestIdentifier" type="CPT-RequestIdentifier"/>
    <xs:element name="subscriberIdentifier" type="CPT-ApplicationID"/>
    <xs:element name="publisherIdentifier" type="CPT-ApplicationID"/>
    <xs:element name="applicability" type="CPTFileApplicability" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element tcip:CPTSubscriptionHeader/requestedType
diagram
type tcip:CPT-SubscriptionType
properties
isRef 0
content simple
source <xs:element name="requestedType" type="CPT-SubscriptionType"/>

element tcip:CPTSubscriptionHeader/expirationDate
diagram
type tcip:CPT-Date
properties
isRef 0
content simple
source <xs:element name="expirationDate" type="CPT-Date"/>

element tcip:CPTSubscriptionHeader/expirationTime
diagram
type tcip:CPT-Time
properties
isRef 0
content simple
source <xs:element name="expirationTime" type="CPT-Time"/>

element tcip:CPTSubscriptionHeader/reportInterval
diagram
type tcip:CPT-Duration
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minInclusive -2147483648
maxInclusive 2147483647
source <xs:element name="reportInterval" type="CPT-Duration" minOccurs="0"/>

element tcip:CPTSubscriptionHeader/requestIdentifier
diagram
type tcip:CPT-RequestIdentifier
properties
isRef 0
content simple
source <xs:element name="requestIdentifier" type="CPT-RequestIdentifier"/>

element tcip:CPTSubscriptionHeader/subscriberIdentifier
diagram
type tcip:CPT-ApplicationID
properties
isRef 0
content simple
source <xs:element name="subscriberIdentifier" type="CPT-ApplicationID"/>

element tcip:CPTSubscriptionHeader/publisherIdentifier
diagram
type tcip:CPT-ApplicationID
properties
isRef 0
content simple
source <xs:element name="publisherIdentifier" type="CPT-ApplicationID"/>

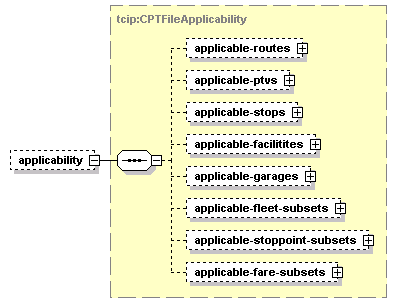

element tcip:CPTSubscriptionHeader/applicability
diagram
type tcip:CPTFileApplicability
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children applicable-routes applicable-ptvs applicable-stops applicable-facilitites applicable-garages applicable-fleet-subsets applicable-stoppoint-subsets applicable-fare-subsets
source <xs:element name="applicability" type="CPTFileApplicability" minOccurs="0"/>
