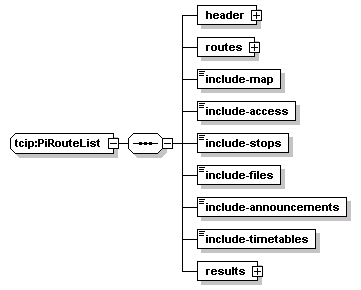

complexType tcip:PiRouteList
diagram
namespace http://www.TCIP-Adopted-03-00-01
children header routes include-map include-access include-stops include-files include-announcements include-timetables results
used by
element tcip:piRouteList
source <xs:complexType name="PiRouteList">
  <xs:sequence>
    <xs:element name="header" type="CPTSubscriptionHeader"/>
    <xs:element name="routes">
      <xs:complexType>
        <xs:sequence maxOccurs="200">
          <xs:element name="route" type="SCHRouteIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="include-map" type="CPT-Boolean"/>
    <xs:element name="include-access" type="CPT-Boolean"/>
    <xs:element name="include-stops" type="CPT-Boolean"/>
    <xs:element name="include-files" type="CPT-Boolean"/>
    <xs:element name="include-announcements" type="CPT-Boolean"/>
    <xs:element name="include-timetables" type="CPT-Boolean"/>
    <xs:element name="results">
      <xs:complexType>
        <xs:sequence maxOccurs="200">
          <xs:element name="result" type="PIRouteInfo"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

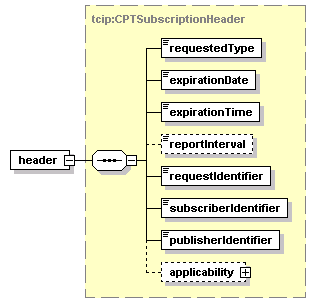

element tcip:PiRouteList/header
diagram
type tcip:CPTSubscriptionHeader
properties
isRef 0
content complex
children requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source <xs:element name="header" type="CPTSubscriptionHeader"/>

element tcip:PiRouteList/routes
diagram
properties
isRef 0
content complex
children route
source <xs:element name="routes">
  <xs:complexType>
    <xs:sequence maxOccurs="200">
      <xs:element name="route" type="SCHRouteIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:PiRouteList/routes/route
diagram
type tcip:SCHRouteIden
properties
isRef 0
content complex
children route-id agency-id route-designator route-name
source <xs:element name="route" type="SCHRouteIden"/>

element tcip:PiRouteList/include-map
diagram
type tcip:CPT-Boolean
properties
isRef 0
content simple
source <xs:element name="include-map" type="CPT-Boolean"/>

element tcip:PiRouteList/include-access
diagram
type tcip:CPT-Boolean
properties
isRef 0
content simple
source <xs:element name="include-access" type="CPT-Boolean"/>

element tcip:PiRouteList/include-stops
diagram
type tcip:CPT-Boolean
properties
isRef 0
content simple
source <xs:element name="include-stops" type="CPT-Boolean"/>

element tcip:PiRouteList/include-files
diagram
type tcip:CPT-Boolean
properties
isRef 0
content simple
source <xs:element name="include-files" type="CPT-Boolean"/>

element tcip:PiRouteList/include-announcements
diagram
type tcip:CPT-Boolean
properties
isRef 0
content simple
source <xs:element name="include-announcements" type="CPT-Boolean"/>

element tcip:PiRouteList/include-timetables
diagram
type tcip:CPT-Boolean
properties
isRef 0
content simple
source <xs:element name="include-timetables" type="CPT-Boolean"/>

element tcip:PiRouteList/results
diagram
properties
isRef 0
content complex
children result
source <xs:element name="results">
  <xs:complexType>
    <xs:sequence maxOccurs="200">
      <xs:element name="result" type="PIRouteInfo"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

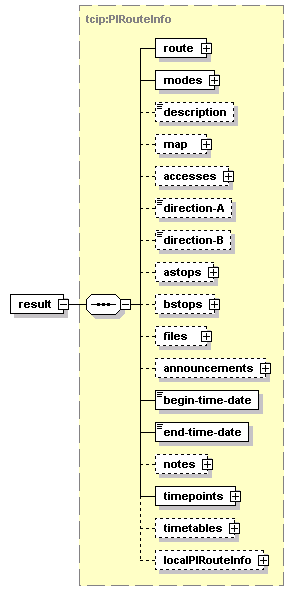

element tcip:PiRouteList/results/result
diagram
type tcip:PIRouteInfo
properties
isRef 0
content complex
children route modes description map accesses direction-A direction-B astops bstops files announcements begin-time-date end-time-date notes timepoints timetables localPIRouteInfo
source <xs:element name="result" type="PIRouteInfo"/>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
