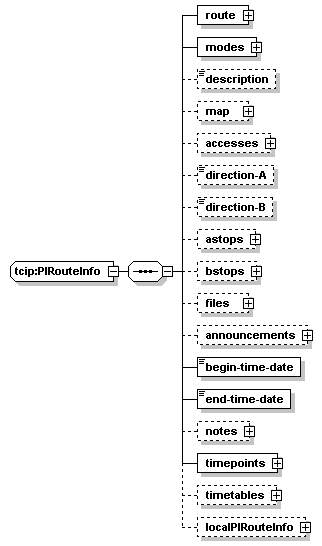

complexType tcip:PIRouteInfo
diagram
namespace http://www.TCIP-Adopted-03-00-01
children route modes description map accesses direction-A direction-B astops bstops files announcements begin-time-date end-time-date notes timepoints timetables localPIRouteInfo
used by
element tcip:PiRouteList/results/result
source <xs:complexType name="PIRouteInfo">
  <xs:sequence>
    <xs:element name="route" type="SCHRouteIden"/>
    <xs:element name="modes">
      <xs:complexType>
        <xs:sequence maxOccurs="10">
          <xs:element name="mode" type="CPT-Mode"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="description" type="CPT-Footnote" minOccurs="0"/>
    <xs:element name="map" type="PIMap" minOccurs="0"/>
    <xs:element name="accesses" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="100">
          <xs:element name="accesse" type="PIAccessibility"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="direction-A" type="SCH-RouteDirectionName" minOccurs="0"/>
    <xs:element name="direction-B" type="SCH-RouteDirectionName" minOccurs="0"/>
    <xs:element name="astops" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="500">
          <xs:element name="astop" type="CPTStoppointIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="bstops" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="500">
          <xs:element name="bstop" type="CPTStoppointIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="files" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="100">
          <xs:element name="file" type="PIAgencyStaticFile"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="announcements" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="100">
          <xs:element name="announcement" type="PIAnnouncement"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="begin-time-date" type="CPT-DateTime"/>
    <xs:element name="end-time-date" type="CPT-DateTime"/>
    <xs:element name="notes" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="1000">
          <xs:element name="note" type="SCHNoteInfo"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="timepoints">
      <xs:complexType>
        <xs:sequence maxOccurs="1000">
          <xs:element name="timepoint" type="PITimetableTimepoint"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="timetables" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="20">
          <xs:element name="timetable" type="PIXMLTimetable"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="localPIRouteInfo" type="local:PIRouteInfo" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element tcip:PIRouteInfo/route
diagram
type tcip:SCHRouteIden
properties
isRef 0
content complex
children route-id agency-id route-designator route-name
source <xs:element name="route" type="SCHRouteIden"/>

element tcip:PIRouteInfo/modes
diagram
properties
isRef 0
content complex
children mode
source <xs:element name="modes">
  <xs:complexType>
    <xs:sequence maxOccurs="10">
      <xs:element name="mode" type="CPT-Mode"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:PIRouteInfo/modes/mode
diagram
type tcip:CPT-Mode
properties
isRef 0
content simple
facets
minLength 1
maxLength 2
source <xs:element name="mode" type="CPT-Mode"/>

element tcip:PIRouteInfo/description
diagram
type tcip:CPT-Footnote
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 0
maxLength 255
source <xs:element name="description" type="CPT-Footnote" minOccurs="0"/>

element tcip:PIRouteInfo/map
diagram
type tcip:PIMap
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children map-image map-format map-URL map-headline map-footnote itineraryID
source <xs:element name="map" type="PIMap" minOccurs="0"/>

element tcip:PIRouteInfo/accesses
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children accesse
source <xs:element name="accesses" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="100">
      <xs:element name="accesse" type="PIAccessibility"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

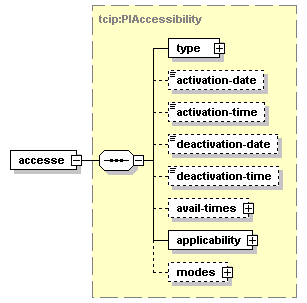

element tcip:PIRouteInfo/accesses/accesse
diagram
type tcip:PIAccessibility
properties
isRef 0
content complex
children type activation-date activation-time deactivation-date deactivation-time avail-times applicability modes
source <xs:element name="accesse" type="PIAccessibility"/>

element tcip:PIRouteInfo/direction-A
diagram
type tcip:SCH-RouteDirectionName
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="direction-A" type="SCH-RouteDirectionName" minOccurs="0"/>

element tcip:PIRouteInfo/direction-B
diagram
type tcip:SCH-RouteDirectionName
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="direction-B" type="SCH-RouteDirectionName" minOccurs="0"/>

element tcip:PIRouteInfo/astops
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children astop
source <xs:element name="astops" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="500">
      <xs:element name="astop" type="CPTStoppointIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:PIRouteInfo/astops/astop
diagram
type tcip:CPTStoppointIden
properties
isRef 0
content complex
children stoppoint-id agency-id name
source <xs:element name="astop" type="CPTStoppointIden"/>

element tcip:PIRouteInfo/bstops
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children bstop
source <xs:element name="bstops" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="500">
      <xs:element name="bstop" type="CPTStoppointIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:PIRouteInfo/bstops/bstop
diagram
type tcip:CPTStoppointIden
properties
isRef 0
content complex
children stoppoint-id agency-id name
source <xs:element name="bstop" type="CPTStoppointIden"/>

element tcip:PIRouteInfo/files
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children file
source <xs:element name="files" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="100">
      <xs:element name="file" type="PIAgencyStaticFile"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

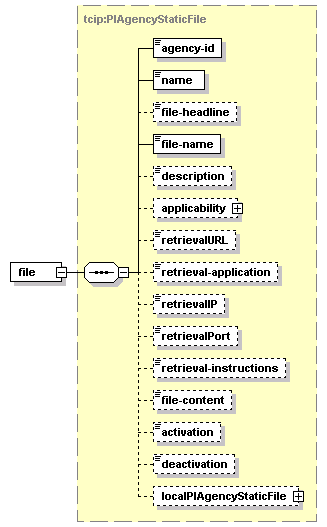

element tcip:PIRouteInfo/files/file
diagram
type tcip:PIAgencyStaticFile
properties
isRef 0
content complex
children agency-id name file-headline file-name description applicability retrievalURL retrieval-application retrievalIP retrievalPort retrieval-instructions file-content activation deactivation localPIAgencyStaticFile
source <xs:element name="file" type="PIAgencyStaticFile"/>

element tcip:PIRouteInfo/announcements
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children announcement
source <xs:element name="announcements" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="100">
      <xs:element name="announcement" type="PIAnnouncement"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

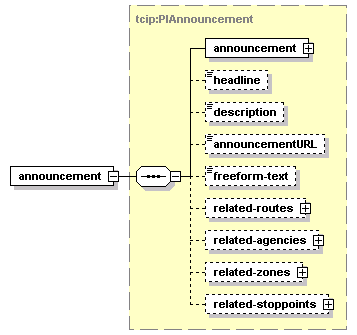

element tcip:PIRouteInfo/announcements/announcement
diagram
type tcip:PIAnnouncement
properties
isRef 0
content complex
children announcement headline description announcementURL freeform-text related-routes related-agencies related-zones related-stoppoints
source <xs:element name="announcement" type="PIAnnouncement"/>

element tcip:PIRouteInfo/begin-time-date
diagram
type tcip:CPT-DateTime
properties
isRef 0
content simple
source <xs:element name="begin-time-date" type="CPT-DateTime"/>

element tcip:PIRouteInfo/end-time-date
diagram
type tcip:CPT-DateTime
properties
isRef 0
content simple
source <xs:element name="end-time-date" type="CPT-DateTime"/>

element tcip:PIRouteInfo/notes
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children note
source <xs:element name="notes" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="1000">
      <xs:element name="note" type="SCHNoteInfo"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:PIRouteInfo/notes/note
diagram
type tcip:SCHNoteInfo
properties
isRef 0
content complex
children note metadata public note-text localSCHNoteInfo
source <xs:element name="note" type="SCHNoteInfo"/>

element tcip:PIRouteInfo/timepoints
diagram
properties
isRef 0
content complex
children timepoint
source <xs:element name="timepoints">
  <xs:complexType>
    <xs:sequence maxOccurs="1000">
      <xs:element name="timepoint" type="PITimetableTimepoint"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

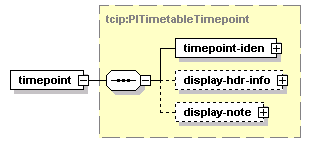

element tcip:PIRouteInfo/timepoints/timepoint
diagram
type tcip:PITimetableTimepoint
properties
isRef 0
content complex
children timepoint-iden display-hdr-info display-note
source <xs:element name="timepoint" type="PITimetableTimepoint"/>

element tcip:PIRouteInfo/timetables
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children timetable
source <xs:element name="timetables" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="20">
      <xs:element name="timetable" type="PIXMLTimetable"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

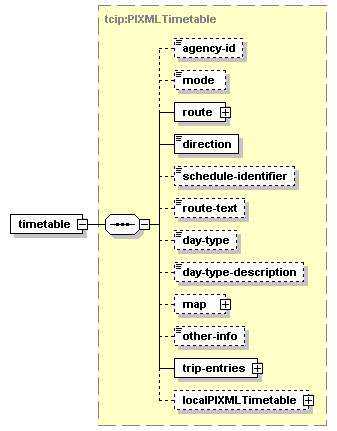

element tcip:PIRouteInfo/timetables/timetable
diagram
type tcip:PIXMLTimetable
properties
isRef 0
content complex
children agency-id mode route direction schedule-identifier route-text day-type day-type-description map other-info trip-entries localPIXMLTimetable
source <xs:element name="timetable" type="PIXMLTimetable"/>

element tcip:PIRouteInfo/localPIRouteInfo
diagram
type PIRouteInfo
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localPIRouteInfo" type="local:PIRouteInfo" minOccurs="0"/>
