complexType tcip:PITimetableTimepoint

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	timepoint-iden display-hdr-info display-note
used by	elements  atis:TransitInformation/schedules/schedule/timepoints/timepoint tcip:PiPushTextTimetable/timepoints/timepoint tcip:PiTextTimetable/timepoints/timepoint tcip:PIRouteInfo/timepoints/timepoint
source	<xs:complexType name="PITimetableTimepoint">   <xs:sequence>     <xs:element name="timepoint-iden" type="SCHTimepointIden"/>     <xs:element name="display-hdr-info" type="SCHNoteIden" minOccurs="0"/>     <xs:element name="display-note" type="SCHNoteIden" minOccurs="0"/>   </xs:sequence> </xs:complexType>

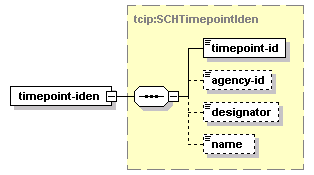

element tcip:PITimetableTimepoint/timepoint-iden

diagram
type	tcip:SCHTimepointIden
properties	isRef  0 content  complex
children	timepoint-id agency-id designator name
source	<xs:element name="timepoint-iden" type="SCHTimepointIden"/>

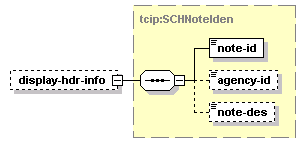

element tcip:PITimetableTimepoint/display-hdr-info

diagram
type	tcip:SCHNoteIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	note-id agency-id note-des
source	<xs:element name="display-hdr-info" type="SCHNoteIden" minOccurs="0"/>

element tcip:PITimetableTimepoint/display-note

diagram
type	tcip:SCHNoteIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	note-id agency-id note-des
source	<xs:element name="display-note" type="SCHNoteIden" minOccurs="0"/>
