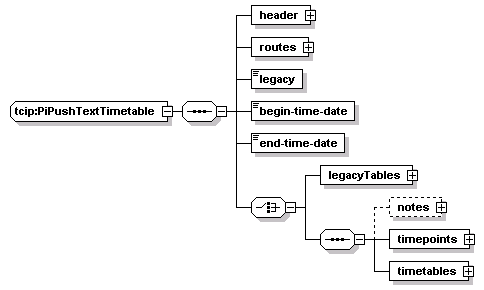

complexType tcip:PiPushTextTimetable
diagram
namespace http://www.TCIP-Adopted-03-00-01
children header routes legacy begin-time-date end-time-date legacyTables notes timepoints timetables
used by
element tcip:piPushTextTimetable
source <xs:complexType name="PiPushTextTimetable">
  <xs:sequence>
    <xs:element name="header" type="CPTPushHeader"/>
    <xs:element name="routes">
      <xs:complexType>
        <xs:sequence maxOccurs="1000">
          <xs:element name="route" type="SCHRouteIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="legacy" type="CPT-Boolean"/>
    <xs:element name="begin-time-date" type="CPT-DateTime"/>
    <xs:element name="end-time-date" type="CPT-DateTime"/>
    <xs:choice>
      <xs:element name="legacyTables">
        <xs:complexType>
          <xs:sequence maxOccurs="1000">
            <xs:element name="legacyTable" type="PIPublishedSchedule"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:sequence>
        <xs:element name="notes" minOccurs="0">
          <xs:complexType>
            <xs:sequence maxOccurs="1000">
              <xs:element name="note" type="SCHNoteInfo"/>
              <!-- notes for all included timetables -->
            </xs:sequence>
          </xs:complexType>
        </xs:element>
        <xs:element name="timepoints">
          <xs:complexType>
            <xs:sequence maxOccurs="10000">
              <xs:element name="timepoint" type="PITimetableTimepoint"/>
            </xs:sequence>
          </xs:complexType>
        </xs:element>
        <xs:element name="timetables">
          <xs:complexType>
            <xs:sequence maxOccurs="1000">
              <xs:element name="timetable" type="PIXMLTimetable"/>
            </xs:sequence>
          </xs:complexType>
        </xs:element>
      </xs:sequence>
    </xs:choice>
  </xs:sequence>
</xs:complexType>

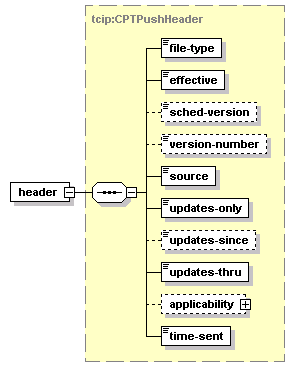

element tcip:PiPushTextTimetable/header
diagram
type tcip:CPTPushHeader
properties
isRef 0
content complex
children file-type effective sched-version version-number source updates-only updates-since updates-thru applicability time-sent
source <xs:element name="header" type="CPTPushHeader"/>

element tcip:PiPushTextTimetable/routes
diagram
properties
isRef 0
content complex
children route
source <xs:element name="routes">
  <xs:complexType>
    <xs:sequence maxOccurs="1000">
      <xs:element name="route" type="SCHRouteIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:PiPushTextTimetable/routes/route
diagram
type tcip:SCHRouteIden
properties
isRef 0
content complex
children route-id agency-id route-designator route-name
source <xs:element name="route" type="SCHRouteIden"/>

element tcip:PiPushTextTimetable/legacy
diagram
type tcip:CPT-Boolean
properties
isRef 0
content simple
source <xs:element name="legacy" type="CPT-Boolean"/>

element tcip:PiPushTextTimetable/begin-time-date
diagram
type tcip:CPT-DateTime
properties
isRef 0
content simple
source <xs:element name="begin-time-date" type="CPT-DateTime"/>

element tcip:PiPushTextTimetable/end-time-date
diagram
type tcip:CPT-DateTime
properties
isRef 0
content simple
source <xs:element name="end-time-date" type="CPT-DateTime"/>

element tcip:PiPushTextTimetable/legacyTables
diagram
properties
isRef 0
content complex
children legacyTable
source <xs:element name="legacyTables">
  <xs:complexType>
    <xs:sequence maxOccurs="1000">
      <xs:element name="legacyTable" type="PIPublishedSchedule"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

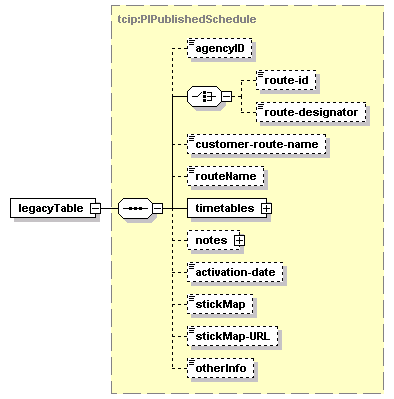

element tcip:PiPushTextTimetable/legacyTables/legacyTable
diagram
type tcip:PIPublishedSchedule
properties
isRef 0
content complex
children agencyID route-id route-designator customer-route-name routeName timetables notes activation-date stickMap stickMap-URL otherInfo
source <xs:element name="legacyTable" type="PIPublishedSchedule"/>

element tcip:PiPushTextTimetable/notes
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children note
source <xs:element name="notes" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="1000">
      <xs:element name="note" type="SCHNoteInfo"/>
      <!-- notes for all included timetables -->
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:PiPushTextTimetable/notes/note
diagram
type tcip:SCHNoteInfo
properties
isRef 0
content complex
children note metadata public note-text localSCHNoteInfo
source <xs:element name="note" type="SCHNoteInfo"/>

element tcip:PiPushTextTimetable/timepoints
diagram
properties
isRef 0
content complex
children timepoint
source <xs:element name="timepoints">
  <xs:complexType>
    <xs:sequence maxOccurs="10000">
      <xs:element name="timepoint" type="PITimetableTimepoint"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

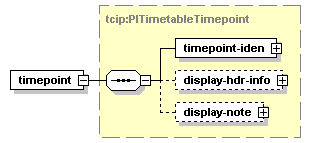

element tcip:PiPushTextTimetable/timepoints/timepoint
diagram
type tcip:PITimetableTimepoint
properties
isRef 0
content complex
children timepoint-iden display-hdr-info display-note
source <xs:element name="timepoint" type="PITimetableTimepoint"/>

element tcip:PiPushTextTimetable/timetables
diagram
properties
isRef 0
content complex
children timetable
source <xs:element name="timetables">
  <xs:complexType>
    <xs:sequence maxOccurs="1000">
      <xs:element name="timetable" type="PIXMLTimetable"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

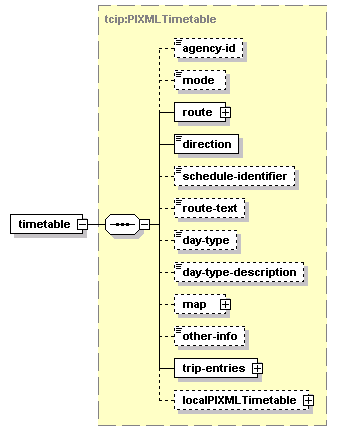

element tcip:PiPushTextTimetable/timetables/timetable
diagram
type tcip:PIXMLTimetable
properties
isRef 0
content complex
children agency-id mode route direction schedule-identifier route-text day-type day-type-description map other-info trip-entries localPIXMLTimetable
source <xs:element name="timetable" type="PIXMLTimetable"/>
