complexType tcip:PIXMLTimetable

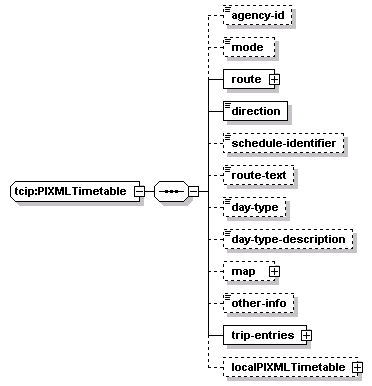

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	agency-id mode route direction schedule-identifier route-text day-type day-type-description map other-info trip-entries localPIXMLTimetable
used by	elements  atis:TransitInformation/schedules/schedule/timetables/timetable tcip:PiPushTextTimetable/timetables/timetable tcip:PiTextTimetable/timetables/timetable tcip:PIRouteInfo/timetables/timetable
source	<xs:complexType name="PIXMLTimetable">   <xs:sequence>     <xs:element name="agency-id" type="CPT-AgencyID" minOccurs="0"/>     <xs:element name="mode" type="CPT-Mode" minOccurs="0"/>     <xs:element name="route" type="SCHRouteIden"/>     <xs:element name="direction" type="SCH-RouteDirectionName"/>     <xs:element name="schedule-identifier" type="CPT-Footnote" minOccurs="0"/>     <!-- agency use -->     <xs:element name="route-text" type="CPT-Footnote" minOccurs="0"/>     <!-- printable misc route info -->     <xs:element name="day-type" type="SCH-DayType" minOccurs="0"/>     <!-- all if not specified -->     <xs:element name="day-type-description" type="SCH-DayTypeDescription" minOccurs="0"/>     <xs:element name="map" type="PIMap" minOccurs="0"/>     <xs:element name="other-info" type="CPT-Footnote" minOccurs="0"/>     <xs:element name="trip-entries">       <xs:complexType>         <xs:sequence maxOccurs="1000">           <xs:element name="trip-entry" type="SCHTimeTableTrip"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="localPIXMLTimetable" type="local:PIXMLTimetable" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:PIXMLTimetable/agency-id

diagram
type	tcip:CPT-AgencyID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="agency-id" type="CPT-AgencyID" minOccurs="0"/>

element tcip:PIXMLTimetable/mode

diagram
type	tcip:CPT-Mode
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  2
source	<xs:element name="mode" type="CPT-Mode" minOccurs="0"/>

element tcip:PIXMLTimetable/route

diagram
type	tcip:SCHRouteIden
properties	isRef  0 content  complex
children	route-id agency-id route-designator route-name
source	<xs:element name="route" type="SCHRouteIden"/>

element tcip:PIXMLTimetable/direction

diagram
type	tcip:SCH-RouteDirectionName
properties	isRef  0 content  simple
source	<xs:element name="direction" type="SCH-RouteDirectionName"/>

element tcip:PIXMLTimetable/schedule-identifier

diagram
type	tcip:CPT-Footnote
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="schedule-identifier" type="CPT-Footnote" minOccurs="0"/>

element tcip:PIXMLTimetable/route-text

diagram
type	tcip:CPT-Footnote
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="route-text" type="CPT-Footnote" minOccurs="0"/>

element tcip:PIXMLTimetable/day-type

diagram
type	tcip:SCH-DayType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="day-type" type="SCH-DayType" minOccurs="0"/>

element tcip:PIXMLTimetable/day-type-description

diagram
type	tcip:SCH-DayTypeDescription
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="day-type-description" type="SCH-DayTypeDescription" minOccurs="0"/>

element tcip:PIXMLTimetable/map

diagram
type	tcip:PIMap
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	map-image map-format map-URL map-headline map-footnote itineraryID
source	<xs:element name="map" type="PIMap" minOccurs="0"/>

element tcip:PIXMLTimetable/other-info

diagram
type	tcip:CPT-Footnote
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="other-info" type="CPT-Footnote" minOccurs="0"/>

element tcip:PIXMLTimetable/trip-entries

diagram
properties	isRef  0 content  complex
children	trip-entry
source	<xs:element name="trip-entries">   <xs:complexType>     <xs:sequence maxOccurs="1000">       <xs:element name="trip-entry" type="SCHTimeTableTrip"/>     </xs:sequence>   </xs:complexType> </xs:element>

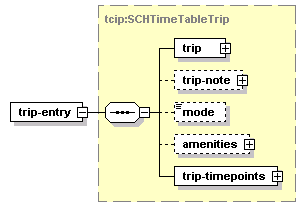

element tcip:PIXMLTimetable/trip-entries/trip-entry

diagram
type	tcip:SCHTimeTableTrip
properties	isRef  0 content  complex
children	trip trip-note mode amenities trip-timepoints
source	<xs:element name="trip-entry" type="SCHTimeTableTrip"/>

element tcip:PIXMLTimetable/localPIXMLTimetable

diagram
type	PIXMLTimetable
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localPIXMLTimetable" type="local:PIXMLTimetable" minOccurs="0"/>
