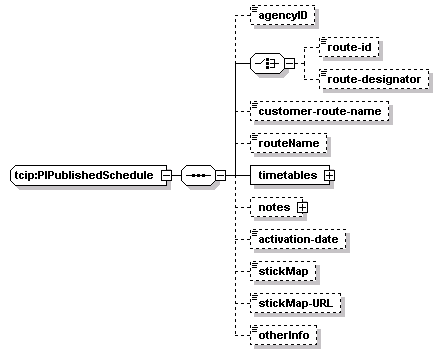

complexType tcip:PIPublishedSchedule

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	agencyID route-id route-designator customer-route-name routeName timetables notes activation-date stickMap stickMap-URL otherInfo
used by	elements  tcip:PiPushTextTimetable/legacyTables/legacyTable tcip:PiTextTimetable/legacyTables/legacyTable
source	<xs:complexType name="PIPublishedSchedule">   <xs:sequence>     <xs:element name="agencyID" type="CPT-AgencyID" minOccurs="0"/>     <xs:choice>       <xs:element name="route-id" type="SCH-RouteID" minOccurs="0"/>       <xs:element name="route-designator" type="SCH-RouteDesignator" minOccurs="0"/>     </xs:choice>     <xs:element name="customer-route-name" type="CPT-Footnote" minOccurs="0"/>     <xs:element name="routeName" type="SCH-RouteName" minOccurs="0"/>     <xs:element name="timetables">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="unbounded">           <xs:element name="timetable" type="PIPublishedScheduleTable"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="notes" minOccurs="0">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="unbounded">           <xs:element name="note" type="SCHNote"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="activation-date" type="CPT-Date" minOccurs="0"/>     <xs:element name="stickMap" type="PI-BinaryImageData" minOccurs="0"/>     <xs:element name="stickMap-URL" type="CPT-Footnote" minOccurs="0"/>     <xs:element name="otherInfo" type="CPT-Footnote" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:PIPublishedSchedule/agencyID

diagram
type	tcip:CPT-AgencyID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="agencyID" type="CPT-AgencyID" minOccurs="0"/>

element tcip:PIPublishedSchedule/route-id

diagram
type	tcip:SCH-RouteID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="route-id" type="SCH-RouteID" minOccurs="0"/>

element tcip:PIPublishedSchedule/route-designator

diagram
type	tcip:SCH-RouteDesignator
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  8
source	<xs:element name="route-designator" type="SCH-RouteDesignator" minOccurs="0"/>

element tcip:PIPublishedSchedule/customer-route-name

diagram
type	tcip:CPT-Footnote
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="customer-route-name" type="CPT-Footnote" minOccurs="0"/>

element tcip:PIPublishedSchedule/routeName

diagram
type	tcip:SCH-RouteName
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  30
source	<xs:element name="routeName" type="SCH-RouteName" minOccurs="0"/>

element tcip:PIPublishedSchedule/timetables

diagram
properties	isRef  0 content  complex
children	timetable
source	<xs:element name="timetables">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="unbounded">       <xs:element name="timetable" type="PIPublishedScheduleTable"/>     </xs:sequence>   </xs:complexType> </xs:element>

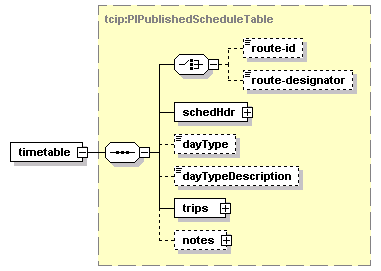

element tcip:PIPublishedSchedule/timetables/timetable

diagram
type	tcip:PIPublishedScheduleTable
properties	isRef  0 content  complex
children	route-id route-designator schedHdr dayType dayTypeDescription trips notes
source	<xs:element name="timetable" type="PIPublishedScheduleTable"/>

element tcip:PIPublishedSchedule/notes

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	note
source	<xs:element name="notes" minOccurs="0">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="unbounded">       <xs:element name="note" type="SCHNote"/>     </xs:sequence>   </xs:complexType> </xs:element>

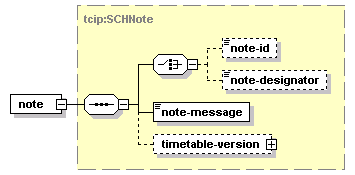

element tcip:PIPublishedSchedule/notes/note

diagram
type	tcip:SCHNote
properties	isRef  0 content  complex
children	note-id note-designator note-message timetable-version
source	<xs:element name="note" type="SCHNote"/>

element tcip:PIPublishedSchedule/activation-date

diagram
type	tcip:CPT-Date
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="activation-date" type="CPT-Date" minOccurs="0"/>

element tcip:PIPublishedSchedule/stickMap

diagram
type	tcip:PI-BinaryImageData
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  2000000
source	<xs:element name="stickMap" type="PI-BinaryImageData" minOccurs="0"/>

element tcip:PIPublishedSchedule/stickMap-URL

diagram
type	tcip:CPT-Footnote
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="stickMap-URL" type="CPT-Footnote" minOccurs="0"/>

element tcip:PIPublishedSchedule/otherInfo

diagram
type	tcip:CPT-Footnote
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="otherInfo" type="CPT-Footnote" minOccurs="0"/>
