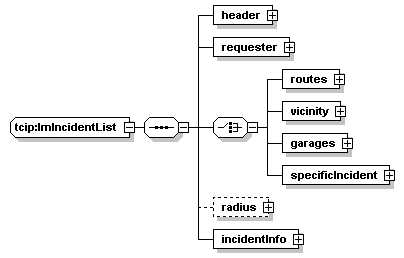

complexType tcip:ImIncidentList
diagram
namespace http://www.TCIP-Adopted-03-00-01
children header requester routes vicinity garages specificIncident radius incidentInfo
used by
element tcip:imIncidentList
source <xs:complexType name="ImIncidentList">
  <xs:sequence>
    <xs:element name="header" type="CPTSubscriptionHeader"/>
    <xs:element name="requester" type="CPTEmployeeIden"/>
    <xs:choice>
      <xs:element name="routes">
        <xs:complexType>
          <xs:sequence maxOccurs="500">
            <xs:element name="route" type="SCHRouteIden"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="vicinity" type="SPPoint"/>
      <xs:element name="garages">
        <xs:complexType>
          <xs:sequence maxOccurs="100">
            <xs:element name="garage" type="CPTTransitFacilityIden"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="specificIncident" type="IMIncidentIden"/>
    </xs:choice>
    <xs:element name="radius" type="lrms:Distance" minOccurs="0"/>
    <xs:element name="incidentInfo">
      <xs:complexType>
        <xs:sequence maxOccurs="1000">
          <xs:element name="incidentInfo-item" type="IMIncidentInfo"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

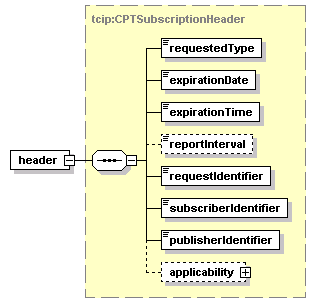

element tcip:ImIncidentList/header
diagram
type tcip:CPTSubscriptionHeader
properties
isRef 0
content complex
children requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source <xs:element name="header" type="CPTSubscriptionHeader"/>

element tcip:ImIncidentList/requester
diagram
type tcip:CPTEmployeeIden
properties
isRef 0
content complex
children employee-id agency-id firstName middleName lastName
source <xs:element name="requester" type="CPTEmployeeIden"/>

element tcip:ImIncidentList/routes
diagram
properties
isRef 0
content complex
children route
source <xs:element name="routes">
  <xs:complexType>
    <xs:sequence maxOccurs="500">
      <xs:element name="route" type="SCHRouteIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:ImIncidentList/routes/route
diagram
type tcip:SCHRouteIden
properties
isRef 0
content complex
children route-id agency-id route-designator route-name
source <xs:element name="route" type="SCHRouteIden"/>

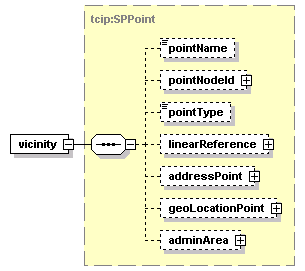

element tcip:ImIncidentList/vicinity
diagram
type tcip:SPPoint
properties
isRef 0
content complex
children pointName pointNodeId pointType linearReference addressPoint geoLocationPoint adminArea
source <xs:element name="vicinity" type="SPPoint"/>

element tcip:ImIncidentList/garages
diagram
properties
isRef 0
content complex
children garage
source <xs:element name="garages">
  <xs:complexType>
    <xs:sequence maxOccurs="100">
      <xs:element name="garage" type="CPTTransitFacilityIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:ImIncidentList/garages/garage
diagram
type tcip:CPTTransitFacilityIden
properties
isRef 0
content complex
children facility-id agency-id facility-name base-name
source <xs:element name="garage" type="CPTTransitFacilityIden"/>

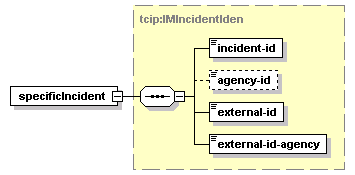

element tcip:ImIncidentList/specificIncident
diagram
type tcip:IMIncidentIden
properties
isRef 0
content complex
children incident-id agency-id external-id external-id-agency
source <xs:element name="specificIncident" type="IMIncidentIden"/>

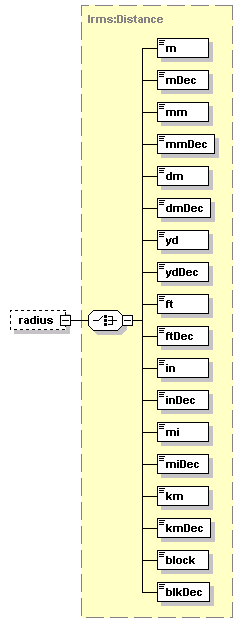

element tcip:ImIncidentList/radius
diagram
type lrms:Distance
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children m mDec mm mmDec dm dmDec yd ydDec ft ftDec in inDec mi miDec km kmDec block blkDec
source <xs:element name="radius" type="lrms:Distance" minOccurs="0"/>

element tcip:ImIncidentList/incidentInfo
diagram
properties
isRef 0
content complex
children incidentInfo-item
source <xs:element name="incidentInfo">
  <xs:complexType>
    <xs:sequence maxOccurs="1000">
      <xs:element name="incidentInfo-item" type="IMIncidentInfo"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

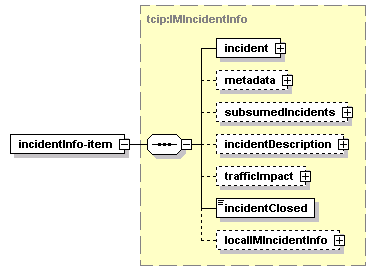

element tcip:ImIncidentList/incidentInfo/incidentInfo-item
diagram
type tcip:IMIncidentInfo
properties
isRef 0
content complex
children incident metadata subsumedIncidents incidentDescription trafficImpact incidentClosed localIMIncidentInfo
source <xs:element name="incidentInfo-item" type="IMIncidentInfo"/>
