complexType tcip:IMIncidentIden

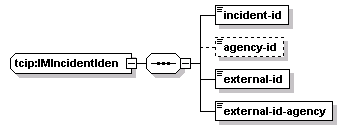

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	incident-id agency-id external-id external-id-agency
used by	elements  tcip:CCEventRecord/associated-incident tcip:SPIncidentLocation/incident tcip:IMWitness/incident tcip:IMPTVehicleInvolved/incident tcip:IMOtherVehicleInvolved/incident tcip:IMInjury/incident tcip:IMIncidentInfo/incident tcip:IMIncident/incident tcip:CPTStoppoint/incidents/incident tcip:ImInitialReportAck/incident tcip:ImIncidentUpdate/incident tcip:ImIncidentHistorySub/incidents/incident tcip:ImIncidentHistory/incidents/incident tcip:PIServiceBulletin/related-incidents/related-incident tcip:ImIncidentListSub/specificIncident tcip:ImIncidentList/specificIncident tcip:IMIncidentInfo/subsumedIncidents/subsumedIncident
source	<xs:complexType name="IMIncidentIden">   <xs:sequence>     <xs:element name="incident-id" type="IM-IncidentID"/>     <xs:element name="agency-id" type="CPT-AgencyID" minOccurs="0"/>     <xs:element name="external-id" type="im:ReferenceID"/>     <xs:element name="external-id-agency" type="CPT-AgencyID"/>   </xs:sequence> </xs:complexType>

element tcip:IMIncidentIden/incident-id

diagram
type	tcip:IM-IncidentID
properties	isRef  0 content  simple
source	<xs:element name="incident-id" type="IM-IncidentID"/>

element tcip:IMIncidentIden/agency-id

diagram
type	tcip:CPT-AgencyID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="agency-id" type="CPT-AgencyID" minOccurs="0"/>

element tcip:IMIncidentIden/external-id

diagram
type	ReferenceID
properties	isRef  0 content  simple
facets	minLength  1 maxLength  64
source	<xs:element name="external-id" type="im:ReferenceID"/>

element tcip:IMIncidentIden/external-id-agency

diagram
type	tcip:CPT-AgencyID
properties	isRef  0 content  simple
source	<xs:element name="external-id-agency" type="CPT-AgencyID"/>
