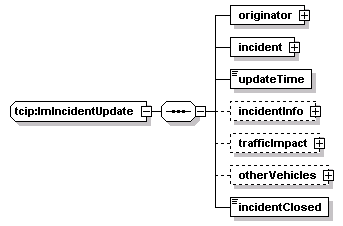

complexType tcip:ImIncidentUpdate
diagram
namespace http://www.TCIP-Adopted-03-00-01
children originator incident updateTime incidentInfo trafficImpact otherVehicles incidentClosed
used by
element tcip:imIncidentUpdate
source <xs:complexType name="ImIncidentUpdate">
  <xs:sequence>
    <xs:element name="originator" type="CPTEmployeeIden"/>
    <xs:element name="incident" type="IMIncidentIden"/>
    <xs:element name="updateTime" type="CPT-DateTime"/>
    <xs:element name="incidentInfo" type="IMIncident" minOccurs="0"/>
    <xs:element name="trafficImpact" type="IMTrafficImpact" minOccurs="0"/>
    <xs:element name="otherVehicles" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="100">
          <xs:element name="otherVehicle" type="IMOtherVehicleInvolved"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="incidentClosed" type="CPT-Boolean"/>
  </xs:sequence>
</xs:complexType>

element tcip:ImIncidentUpdate/originator
diagram
type tcip:CPTEmployeeIden
properties
isRef 0
content complex
children employee-id agency-id firstName middleName lastName
source <xs:element name="originator" type="CPTEmployeeIden"/>

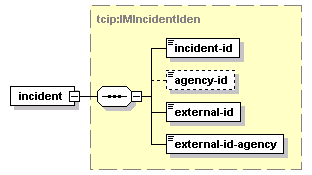

element tcip:ImIncidentUpdate/incident
diagram
type tcip:IMIncidentIden
properties
isRef 0
content complex
children incident-id agency-id external-id external-id-agency
source <xs:element name="incident" type="IMIncidentIden"/>

element tcip:ImIncidentUpdate/updateTime
diagram
type tcip:CPT-DateTime
properties
isRef 0
content simple
source <xs:element name="updateTime" type="CPT-DateTime"/>

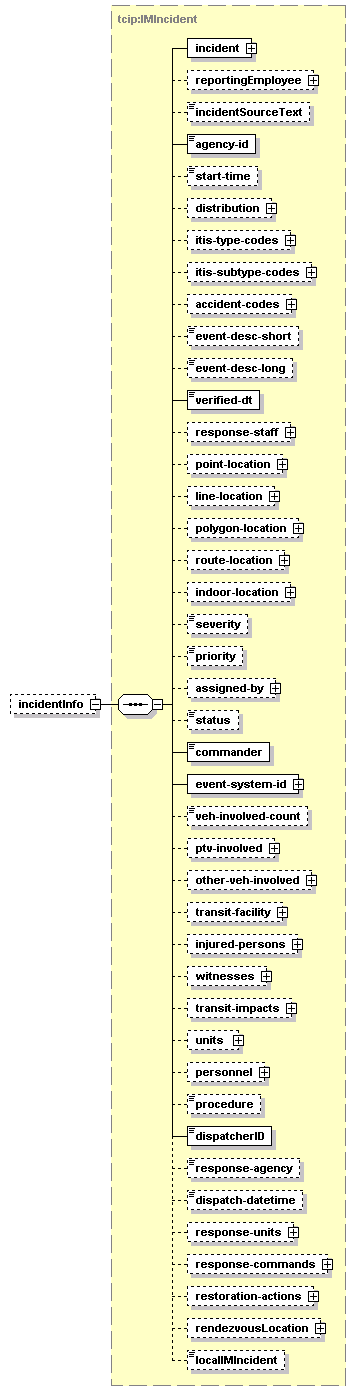

element tcip:ImIncidentUpdate/incidentInfo
diagram
type tcip:IMIncident
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children incident reportingEmployee incidentSourceText agency-id start-time distribution itis-type-codes itis-subtype-codes accident-codes event-desc-short event-desc-long verified-dt response-staff point-location line-location polygon-location route-location indoor-location severity priority assigned-by status commander event-system-id veh-involved-count ptv-involved other-veh-involved transit-facility injured-persons witnesses transit-impacts units personnel procedure dispatcherID response-agency dispatch-datetime response-units response-commands restoration-actions rendezvousLocation localIMIncident
source <xs:element name="incidentInfo" type="IMIncident" minOccurs="0"/>

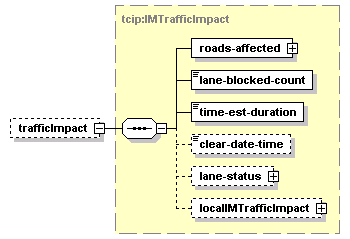

element tcip:ImIncidentUpdate/trafficImpact
diagram
type tcip:IMTrafficImpact
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children roads-affected lane-blocked-count time-est-duration clear-date-time lane-status localIMTrafficImpact
source <xs:element name="trafficImpact" type="IMTrafficImpact" minOccurs="0"/>

element tcip:ImIncidentUpdate/otherVehicles
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children otherVehicle
source <xs:element name="otherVehicles" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="100">
      <xs:element name="otherVehicle" type="IMOtherVehicleInvolved"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

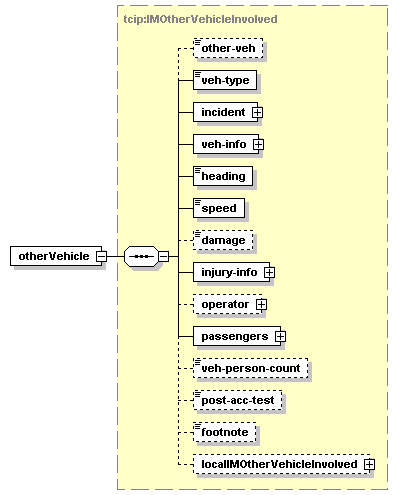

element tcip:ImIncidentUpdate/otherVehicles/otherVehicle
diagram
type tcip:IMOtherVehicleInvolved
properties
isRef 0
content complex
children other-veh veh-type incident veh-info heading speed damage injury-info operator passengers veh-person-count post-acc-test footnote localIMOtherVehicleInvolved
source <xs:element name="otherVehicle" type="IMOtherVehicleInvolved"/>

element tcip:ImIncidentUpdate/incidentClosed
diagram
type tcip:CPT-Boolean
properties
isRef 0
content simple
source <xs:element name="incidentClosed" type="CPT-Boolean"/>
