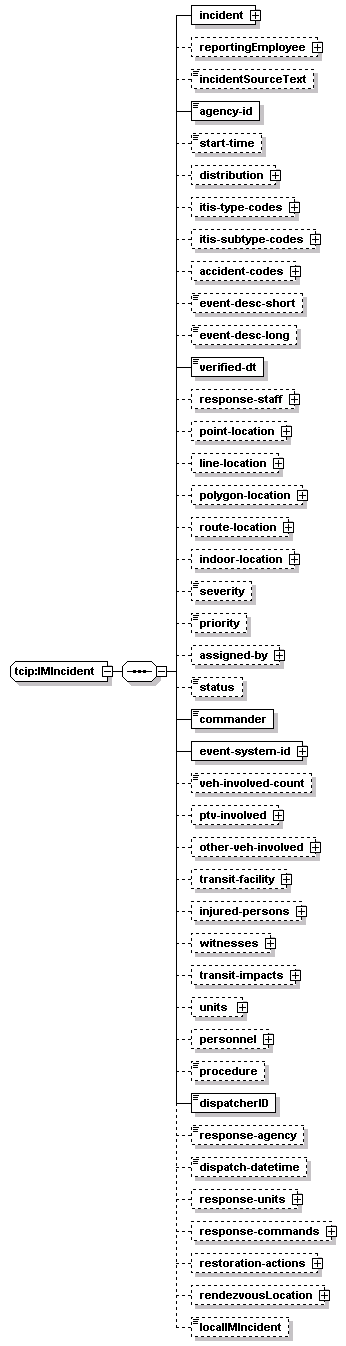

complexType tcip:IMIncident
diagram
namespace http://www.TCIP-Adopted-03-00-01
children incident reportingEmployee incidentSourceText agency-id start-time distribution itis-type-codes itis-subtype-codes accident-codes event-desc-short event-desc-long verified-dt response-staff point-location line-location polygon-location route-location indoor-location severity priority assigned-by status commander event-system-id veh-involved-count ptv-involved other-veh-involved transit-facility injured-persons witnesses transit-impacts units personnel procedure dispatcherID response-agency dispatch-datetime response-units response-commands restoration-actions rendezvousLocation localIMIncident
used by
elements tcip:ImCommandIncidentResponse/incident-info tcip:IMIncidentInfo/incidentDescription tcip:ImIncidentUpdate/incidentInfo tcip:ImInitialIncidentReport/incidentInfo
source <xs:complexType name="IMIncident">
  <xs:sequence>
    <xs:element name="incident" type="IMIncidentIden"/>
    <xs:element name="reportingEmployee" type="CPTEmployeeIden" minOccurs="0"/>
    <xs:element name="incidentSourceText" type="CPT-Footnote" minOccurs="0"/>
    <xs:element name="agency-id" type="CPT-AgencyID"/>
    <!-- transit agency that is reporting the incident -->
    <xs:element name="start-time" type="CPT-DateTime" minOccurs="0"/>
    <xs:element name="distribution" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="10">
          <xs:element name="distribution-item" type="IM-IncidentDistribution"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="itis-type-codes" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="15">
          <xs:element name="itis-type-code" type="itis:ITIScodes"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="itis-subtype-codes" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="15">
          <xs:element name="itis-subtype-code" type="itis:ITIScodes"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="accident-codes" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="20">
          <xs:element name="accident-code" type="IM-AccidentCode"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="event-desc-short" type="IM-IncidentDescShort" minOccurs="0"/>
    <!-- use long or short form -->
    <xs:element name="event-desc-long" type="IM-IncidentDescLong" minOccurs="0"/>
    <!-- use long or short form -->
    <xs:element name="verified-dt" type="CPT-DateTime"/>
    <xs:element name="response-staff" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="1000">
          <xs:element name="response-staff-item" type="IM-ResponseEmployeeID"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="point-location" type="SPPoint" minOccurs="0"/>
    <xs:element name="line-location" type="SPLink" minOccurs="0"/>

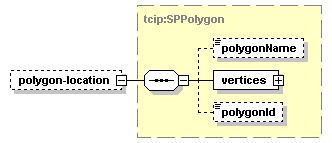

    <xs:element name="polygon-location" type="SPPolygon" minOccurs="0"/>
    <!-- AFFECTED AREA -->

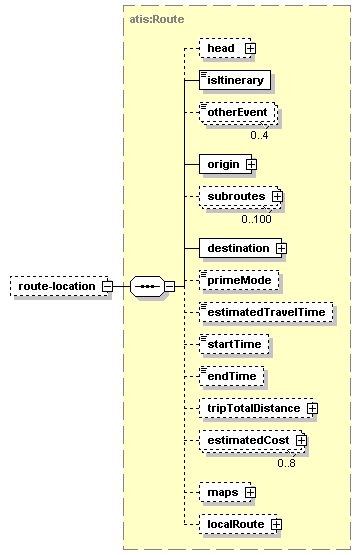

    <xs:element name="route-location" type="atis:Route" minOccurs="0"/>

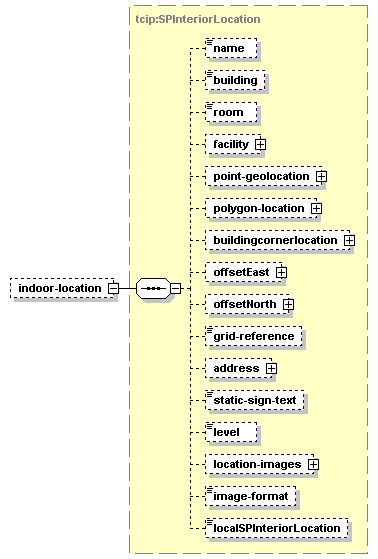

    <xs:element name="indoor-location" type="SPInteriorLocation" minOccurs="0"/>
    <xs:element name="severity" type="CPT-SeverityLevel" minOccurs="0"/>
    <xs:element name="priority" type="CPT-PriorityLevel" minOccurs="0"/>

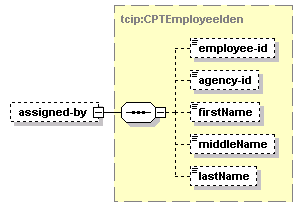

    <xs:element name="assigned-by" type="CPTEmployeeIden" minOccurs="0"/>
    <!-- who assigned priority -->
    <xs:element name="status" type="IM-IncidentStatus" minOccurs="0"/>
    <xs:element name="commander" type="IM-ResponseEmployeeID"/>
    <xs:element name="event-system-id">
      <xs:complexType>
        <xs:sequence maxOccurs="10">
          <xs:element name="event-system-id-item" type="IM-EventIDSystem"/>
          <!-- at least one -->
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="veh-involved-count" type="CPT-GenericCounter" minOccurs="0"/>

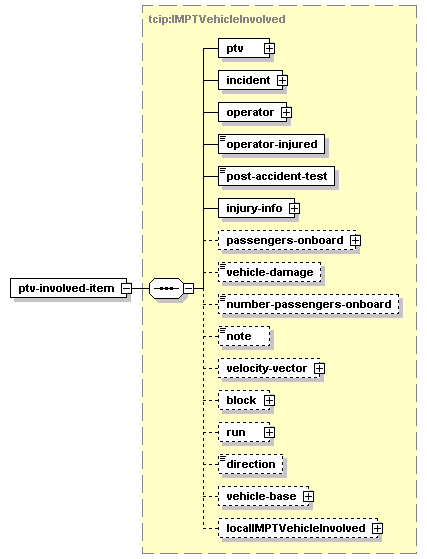

    <xs:element name="ptv-involved" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="20">
          <xs:element name="ptv-involved-item" type="IMPTVehicleInvolved"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="other-veh-involved" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="20">
          <xs:element name="other-veh-involved-item" type="IM-OtherVehicleInvolvedID"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="transit-facility" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="20">

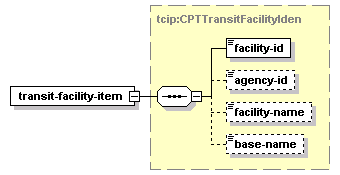

          <xs:element name="transit-facility-item" type="CPTTransitFacilityIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>

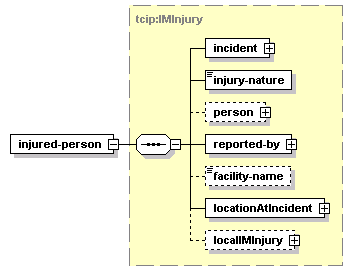

    <xs:element name="injured-persons" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="10">
          <xs:element name="injured-person" type="IMInjury"/>
          <!-- place where incident occurs -->
        </xs:sequence>
      </xs:complexType>
    </xs:element>

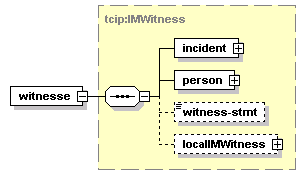

    <xs:element name="witnesses" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="300">
          <xs:element name="witnesse" type="IMWitness"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="transit-impacts" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="200">
          <xs:element name="transit-impact" type="IM-TransitImpacts"/>
          <!-- dispatch response info -->
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="units" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="20">

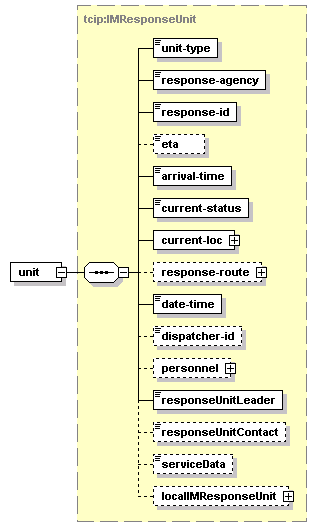

          <xs:element name="unit" type="IMResponseUnit"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="personnel" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="50">

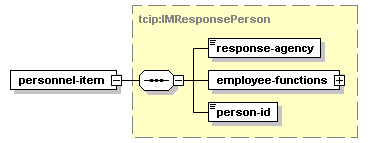

          <xs:element name="personnel-item" type="IMResponsePerson"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="procedure" type="IM-IncidentProcedure" minOccurs="0"/>
    <xs:element name="dispatcherID" type="IM-DispatcherID"/>
    <xs:element name="response-agency" type="IM-ResponseAgencyID" minOccurs="0"/>
    <xs:element name="dispatch-datetime" type="CPT-DateTime" minOccurs="0"/>
    <xs:element name="response-units" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="500">

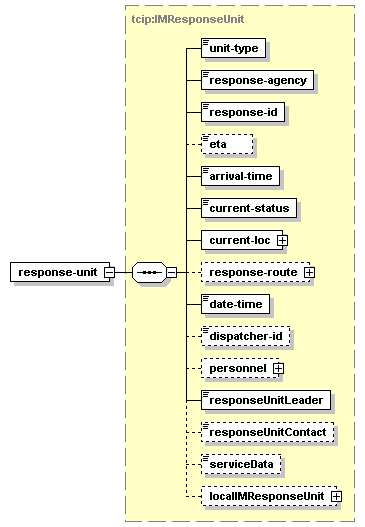

          <xs:element name="response-unit" type="IMResponseUnit"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="response-commands" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="100">
          <xs:element name="response-command" type="IM-ResponseCommands"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="restoration-actions" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="100">
          <xs:element name="restoration-action" type="IM-RestorationAction"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>

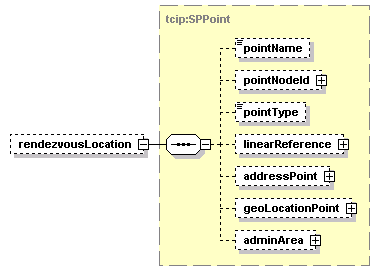

    <xs:element name="rendezvousLocation" type="SPPoint" minOccurs="0"/>
    <!-- rendezvous location for response unit and vehicle requiring service -->
    <xs:element name="localIMIncident" type="local:IMIncident" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

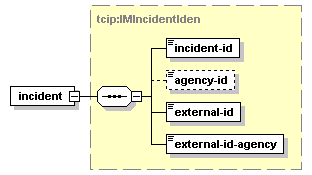

element tcip:IMIncident/incident
diagram
type tcip:IMIncidentIden
properties
isRef 0
content complex
children incident-id agency-id external-id external-id-agency
source <xs:element name="incident" type="IMIncidentIden"/>

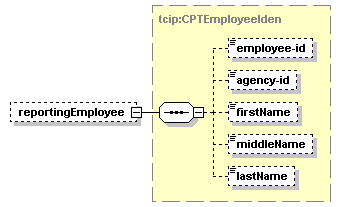

element tcip:IMIncident/reportingEmployee
diagram
type tcip:CPTEmployeeIden
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children employee-id agency-id firstName middleName lastName
source <xs:element name="reportingEmployee" type="CPTEmployeeIden" minOccurs="0"/>

element tcip:IMIncident/incidentSourceText
diagram
type tcip:CPT-Footnote
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 0
maxLength 255
source <xs:element name="incidentSourceText" type="CPT-Footnote" minOccurs="0"/>

element tcip:IMIncident/agency-id
diagram
type tcip:CPT-AgencyID
properties
isRef 0
content simple
source <xs:element name="agency-id" type="CPT-AgencyID"/>

element tcip:IMIncident/start-time
diagram
type tcip:CPT-DateTime
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="start-time" type="CPT-DateTime" minOccurs="0"/>

element tcip:IMIncident/distribution
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children distribution-item
source <xs:element name="distribution" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="10">
      <xs:element name="distribution-item" type="IM-IncidentDistribution"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:IMIncident/distribution/distribution-item
diagram
type tcip:IM-IncidentDistribution
properties
isRef 0
content simple
source <xs:element name="distribution-item" type="IM-IncidentDistribution"/>

element tcip:IMIncident/itis-type-codes
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children itis-type-code
source <xs:element name="itis-type-codes" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="15">
      <xs:element name="itis-type-code" type="itis:ITIScodes"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:IMIncident/itis-type-codes/itis-type-code
diagram
type itis:ITIScodes
properties
isRef 0
content simple
source <xs:element name="itis-type-code" type="itis:ITIScodes"/>

element tcip:IMIncident/itis-subtype-codes
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children itis-subtype-code
source <xs:element name="itis-subtype-codes" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="15">
      <xs:element name="itis-subtype-code" type="itis:ITIScodes"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:IMIncident/itis-subtype-codes/itis-subtype-code
diagram
type itis:ITIScodes
properties
isRef 0
content simple
source <xs:element name="itis-subtype-code" type="itis:ITIScodes"/>

element tcip:IMIncident/accident-codes
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children accident-code
source <xs:element name="accident-codes" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="20">
      <xs:element name="accident-code" type="IM-AccidentCode"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:IMIncident/accident-codes/accident-code
diagram
type tcip:IM-AccidentCode
properties
isRef 0
content simple
source <xs:element name="accident-code" type="IM-AccidentCode"/>

element tcip:IMIncident/event-desc-short
diagram
type tcip:IM-IncidentDescShort
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 0
maxLength 255
source <xs:element name="event-desc-short" type="IM-IncidentDescShort" minOccurs="0"/>

element tcip:IMIncident/event-desc-long
diagram
type tcip:IM-IncidentDescLong
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 100000
source <xs:element name="event-desc-long" type="IM-IncidentDescLong" minOccurs="0"/>

element tcip:IMIncident/verified-dt
diagram
type tcip:CPT-DateTime
properties
isRef 0
content simple
source <xs:element name="verified-dt" type="CPT-DateTime"/>

element tcip:IMIncident/response-staff
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children response-staff-item
source <xs:element name="response-staff" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="1000">
      <xs:element name="response-staff-item" type="IM-ResponseEmployeeID"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:IMIncident/response-staff/response-staff-item
diagram
type tcip:IM-ResponseEmployeeID
properties
isRef 0
content simple
source <xs:element name="response-staff-item" type="IM-ResponseEmployeeID"/>

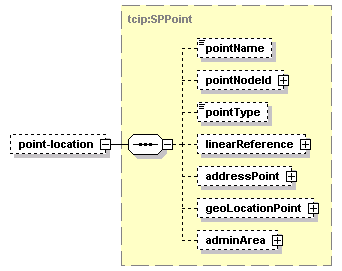

element tcip:IMIncident/point-location
diagram
type tcip:SPPoint
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children pointName pointNodeId pointType linearReference addressPoint geoLocationPoint adminArea
source <xs:element name="point-location" type="SPPoint" minOccurs="0"/>

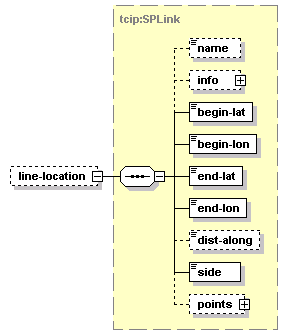

element tcip:IMIncident/line-location
diagram
type tcip:SPLink
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children name info begin-lat begin-lon end-lat end-lon dist-along side points
source <xs:element name="line-location" type="SPLink" minOccurs="0"/>

element tcip:IMIncident/polygon-location
diagram
type tcip:SPPolygon
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children polygonName vertices polygonId
source <xs:element name="polygon-location" type="SPPolygon" minOccurs="0"/>

element tcip:IMIncident/route-location
diagram
type atis:Route
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children head isItinerary otherEvent origin subroutes destination primeMode estimatedTravelTime startTime endTime tripTotalDistance estimatedCost maps localRoute
source <xs:element name="route-location" type="atis:Route" minOccurs="0"/>

element tcip:IMIncident/indoor-location
diagram
type tcip:SPInteriorLocation
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children name building room facility point-geolocation polygon-location buildingcornerlocation offsetEast offsetNorth grid-reference address static-sign-text level location-images image-format localSPInteriorLocation
source <xs:element name="indoor-location" type="SPInteriorLocation" minOccurs="0"/>

element tcip:IMIncident/severity
diagram
type tcip:CPT-SeverityLevel
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="severity" type="CPT-SeverityLevel" minOccurs="0"/>

element tcip:IMIncident/priority
diagram
type tcip:CPT-PriorityLevel
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="priority" type="CPT-PriorityLevel" minOccurs="0"/>

element tcip:IMIncident/assigned-by
diagram
type tcip:CPTEmployeeIden
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children employee-id agency-id firstName middleName lastName
source <xs:element name="assigned-by" type="CPTEmployeeIden" minOccurs="0"/>

element tcip:IMIncident/status
diagram
type tcip:IM-IncidentStatus
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="status" type="IM-IncidentStatus" minOccurs="0"/>

element tcip:IMIncident/commander
diagram
type tcip:IM-ResponseEmployeeID
properties
isRef 0
content simple
source <xs:element name="commander" type="IM-ResponseEmployeeID"/>

element tcip:IMIncident/event-system-id
diagram
properties
isRef 0
content complex
children event-system-id-item
source <xs:element name="event-system-id">
  <xs:complexType>
    <xs:sequence maxOccurs="10">
      <xs:element name="event-system-id-item" type="IM-EventIDSystem"/>
      <!-- at least one -->
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:IMIncident/event-system-id/event-system-id-item
diagram
type tcip:IM-EventIDSystem
properties
isRef 0
content simple
source <xs:element name="event-system-id-item" type="IM-EventIDSystem"/>

element tcip:IMIncident/veh-involved-count
diagram
type tcip:CPT-GenericCounter
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="veh-involved-count" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:IMIncident/ptv-involved
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children ptv-involved-item
source <xs:element name="ptv-involved" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="20">
      <xs:element name="ptv-involved-item" type="IMPTVehicleInvolved"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:IMIncident/ptv-involved/ptv-involved-item
diagram
type tcip:IMPTVehicleInvolved
properties
isRef 0
content complex
children ptv incident operator operator-injured post-accident-test injury-info passengers-onboard vehicle-damage number-passengers-onboard note velocity-vector block run direction vehicle-base localIMPTVehicleInvolved
source <xs:element name="ptv-involved-item" type="IMPTVehicleInvolved"/>

element tcip:IMIncident/other-veh-involved
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children other-veh-involved-item
source <xs:element name="other-veh-involved" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="20">
      <xs:element name="other-veh-involved-item" type="IM-OtherVehicleInvolvedID"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:IMIncident/other-veh-involved/other-veh-involved-item
diagram
type tcip:IM-OtherVehicleInvolvedID
properties
isRef 0
content simple
source <xs:element name="other-veh-involved-item" type="IM-OtherVehicleInvolvedID"/>

element tcip:IMIncident/transit-facility
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children transit-facility-item
source <xs:element name="transit-facility" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="20">
      <xs:element name="transit-facility-item" type="CPTTransitFacilityIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:IMIncident/transit-facility/transit-facility-item
diagram
type tcip:CPTTransitFacilityIden
properties
isRef 0
content complex
children facility-id agency-id facility-name base-name
source <xs:element name="transit-facility-item" type="CPTTransitFacilityIden"/>

element tcip:IMIncident/injured-persons
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children injured-person
source <xs:element name="injured-persons" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="10">
      <xs:element name="injured-person" type="IMInjury"/>
      <!-- place where incident occurs -->
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:IMIncident/injured-persons/injured-person
diagram
type tcip:IMInjury
properties
isRef 0
content complex
children incident injury-nature person reported-by facility-name locationAtIncident localIMInjury
source <xs:element name="injured-person" type="IMInjury"/>

element tcip:IMIncident/witnesses
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children witnesse
source <xs:element name="witnesses" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="300">
      <xs:element name="witnesse" type="IMWitness"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:IMIncident/witnesses/witnesse
diagram
type tcip:IMWitness
properties
isRef 0
content complex
children incident person witness-stmt localIMWitness
source <xs:element name="witnesse" type="IMWitness"/>

element tcip:IMIncident/transit-impacts
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children transit-impact
source <xs:element name="transit-impacts" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="200">
      <xs:element name="transit-impact" type="IM-TransitImpacts"/>
      <!-- dispatch response info -->
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:IMIncident/transit-impacts/transit-impact
diagram
type tcip:IM-TransitImpacts
properties
isRef 0
content simple
facets
minLength 0
maxLength 255
source <xs:element name="transit-impact" type="IM-TransitImpacts"/>

element tcip:IMIncident/units
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children unit
source <xs:element name="units" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="20">
      <xs:element name="unit" type="IMResponseUnit"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:IMIncident/units/unit
diagram
type tcip:IMResponseUnit
properties
isRef 0
content complex
children unit-type response-agency response-id eta arrival-time current-status current-loc response-route date-time dispatcher-id personnel responseUnitLeader responseUnitContact serviceData localIMResponseUnit
source <xs:element name="unit" type="IMResponseUnit"/>

element tcip:IMIncident/personnel
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children personnel-item
source <xs:element name="personnel" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="50">
      <xs:element name="personnel-item" type="IMResponsePerson"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:IMIncident/personnel/personnel-item
diagram
type tcip:IMResponsePerson
properties
isRef 0
content complex
children response-agency employee-functions person-id
source <xs:element name="personnel-item" type="IMResponsePerson"/>

element tcip:IMIncident/procedure
diagram
type tcip:IM-IncidentProcedure
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 100000
source <xs:element name="procedure" type="IM-IncidentProcedure" minOccurs="0"/>

element tcip:IMIncident/dispatcherID
diagram
type tcip:IM-DispatcherID
properties
isRef 0
content simple
source <xs:element name="dispatcherID" type="IM-DispatcherID"/>

element tcip:IMIncident/response-agency
diagram
type tcip:IM-ResponseAgencyID
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 20
source <xs:element name="response-agency" type="IM-ResponseAgencyID" minOccurs="0"/>

element tcip:IMIncident/dispatch-datetime
diagram
type tcip:CPT-DateTime
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="dispatch-datetime" type="CPT-DateTime" minOccurs="0"/>

element tcip:IMIncident/response-units
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children response-unit
source <xs:element name="response-units" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="500">
      <xs:element name="response-unit" type="IMResponseUnit"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:IMIncident/response-units/response-unit
diagram
type tcip:IMResponseUnit
properties
isRef 0
content complex
children unit-type response-agency response-id eta arrival-time current-status current-loc response-route date-time dispatcher-id personnel responseUnitLeader responseUnitContact serviceData localIMResponseUnit
source <xs:element name="response-unit" type="IMResponseUnit"/>

element tcip:IMIncident/response-commands
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children response-command
source <xs:element name="response-commands" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="100">
      <xs:element name="response-command" type="IM-ResponseCommands"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:IMIncident/response-commands/response-command
diagram
type tcip:IM-ResponseCommands
properties
isRef 0
content simple
source <xs:element name="response-command" type="IM-ResponseCommands"/>

element tcip:IMIncident/restoration-actions
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children restoration-action
source <xs:element name="restoration-actions" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="100">
      <xs:element name="restoration-action" type="IM-RestorationAction"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:IMIncident/restoration-actions/restoration-action
diagram
type tcip:IM-RestorationAction
properties
isRef 0
content simple
source <xs:element name="restoration-action" type="IM-RestorationAction"/>

element tcip:IMIncident/rendezvousLocation
diagram
type tcip:SPPoint
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children pointName pointNodeId pointType linearReference addressPoint geoLocationPoint adminArea
source <xs:element name="rendezvousLocation" type="SPPoint" minOccurs="0"/>

element tcip:IMIncident/localIMIncident
diagram
type IMIncident
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="localIMIncident" type="local:IMIncident" minOccurs="0"/>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
