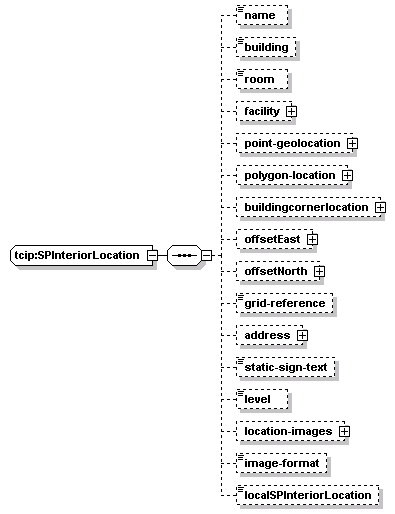

complexType tcip:SPInteriorLocation

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	name building room facility point-geolocation polygon-location buildingcornerlocation offsetEast offsetNorth grid-reference address static-sign-text level location-images image-format localSPInteriorLocation
used by	elements  tcip:SPInteriorFeature/feature-location tcip:SPIntDirection/from tcip:PiDirections/from/from-indoor tcip:PiDirectionsSub/from/from-indoor tcip:IMIncident/indoor-location tcip:PIAmenity/indoor-location tcip:SPIntDirection/to tcip:PiDirections/to/to-indoor tcip:PiDirectionsSub/to/to-indoor
source	<xs:complexType name="SPInteriorLocation">   <xs:sequence>     <xs:element name="name" type="SP-FeatureName" minOccurs="0"/>     <xs:element name="building" type="SP-BuildingIdentifier" minOccurs="0"/>     <xs:element name="room" type="SP-RoomIdentifier" minOccurs="0"/>     <xs:element name="facility" type="CPTTransitFacilityIden" minOccurs="0"/>     <xs:element name="point-geolocation" type="lrms:GeoLocation" minOccurs="0"/>     <xs:element name="polygon-location" type="SPPolygon" minOccurs="0"/>     <xs:element name="buildingcornerlocation" type="lrms:GeoLocation" minOccurs="0"/>     <xs:element name="offsetEast" type="lrms:Distance" minOccurs="0"/>     <xs:element name="offsetNorth" type="lrms:Distance" minOccurs="0"/>     <xs:element name="grid-reference" type="SP-IndoorGridIdentifier" minOccurs="0"/>     <xs:element name="address" type="lrms:AddressPoint" minOccurs="0"/>     <xs:element name="static-sign-text" type="PI-StaticSignMessage" minOccurs="0"/>     <xs:element name="level" type="lrms:VerticalLevel" minOccurs="0"/>     <xs:element name="location-images" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="10">           <xs:element name="location-image" type="PI-BinaryImageData"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="image-format" type="PI-GraphicFormat" minOccurs="0"/>     <xs:element name="localSPInteriorLocation" type="local:SPInteriorLocation" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:SPInteriorLocation/name

diagram
type	tcip:SP-FeatureName
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  30
source	<xs:element name="name" type="SP-FeatureName" minOccurs="0"/>

element tcip:SPInteriorLocation/building

diagram
type	tcip:SP-BuildingIdentifier
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  30
source	<xs:element name="building" type="SP-BuildingIdentifier" minOccurs="0"/>

element tcip:SPInteriorLocation/room

diagram
type	tcip:SP-RoomIdentifier
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  30
source	<xs:element name="room" type="SP-RoomIdentifier" minOccurs="0"/>

element tcip:SPInteriorLocation/facility

diagram
type	tcip:CPTTransitFacilityIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	facility-id agency-id facility-name base-name
source	<xs:element name="facility" type="CPTTransitFacilityIden" minOccurs="0"/>

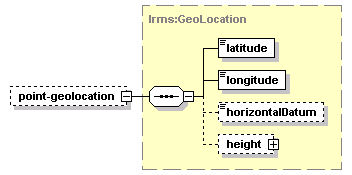

element tcip:SPInteriorLocation/point-geolocation

diagram
type	lrms:GeoLocation
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	latitude longitude horizontalDatum height
source	<xs:element name="point-geolocation" type="lrms:GeoLocation" minOccurs="0"/>

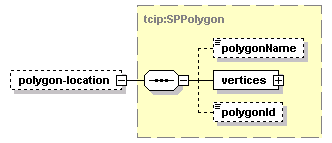

element tcip:SPInteriorLocation/polygon-location

diagram
type	tcip:SPPolygon
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	polygonName vertices polygonId
source	<xs:element name="polygon-location" type="SPPolygon" minOccurs="0"/>

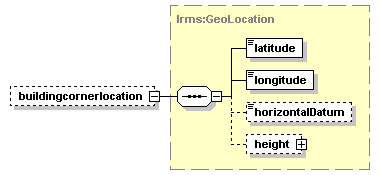

element tcip:SPInteriorLocation/buildingcornerlocation

diagram
type	lrms:GeoLocation
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	latitude longitude horizontalDatum height
source	<xs:element name="buildingcornerlocation" type="lrms:GeoLocation" minOccurs="0"/>

element tcip:SPInteriorLocation/offsetEast

diagram
type	lrms:Distance
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	m mDec mm mmDec dm dmDec yd ydDec ft ftDec in inDec mi miDec km kmDec block blkDec
source	<xs:element name="offsetEast" type="lrms:Distance" minOccurs="0"/>

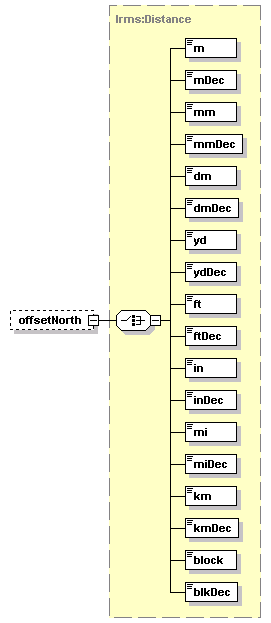

element tcip:SPInteriorLocation/offsetNorth

diagram
type	lrms:Distance
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	m mDec mm mmDec dm dmDec yd ydDec ft ftDec in inDec mi miDec km kmDec block blkDec
source	<xs:element name="offsetNorth" type="lrms:Distance" minOccurs="0"/>

element tcip:SPInteriorLocation/grid-reference

diagram
type	tcip:SP-IndoorGridIdentifier
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  30
source	<xs:element name="grid-reference" type="SP-IndoorGridIdentifier" minOccurs="0"/>

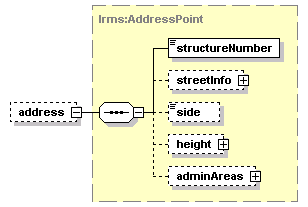

element tcip:SPInteriorLocation/address

diagram
type	lrms:AddressPoint
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	structureNumber streetInfo side height adminAreas
source	<xs:element name="address" type="lrms:AddressPoint" minOccurs="0"/>

element tcip:SPInteriorLocation/static-sign-text

diagram
type	tcip:PI-StaticSignMessage
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  100000
source	<xs:element name="static-sign-text" type="PI-StaticSignMessage" minOccurs="0"/>

element tcip:SPInteriorLocation/level

diagram
type	lrms:VerticalLevel
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minInclusive  -128
source	<xs:element name="level" type="lrms:VerticalLevel" minOccurs="0"/>

element tcip:SPInteriorLocation/location-images

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	location-image
source	<xs:element name="location-images" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="10">       <xs:element name="location-image" type="PI-BinaryImageData"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:SPInteriorLocation/location-images/location-image

diagram
type	tcip:PI-BinaryImageData
properties	isRef  0 content  simple
facets	maxLength  2000000
source	<xs:element name="location-image" type="PI-BinaryImageData"/>

element tcip:SPInteriorLocation/image-format

diagram
type	tcip:PI-GraphicFormat
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="image-format" type="PI-GraphicFormat" minOccurs="0"/>

element tcip:SPInteriorLocation/localSPInteriorLocation

diagram
type	SPInteriorLocation
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="localSPInteriorLocation" type="local:SPInteriorLocation" minOccurs="0"/>
