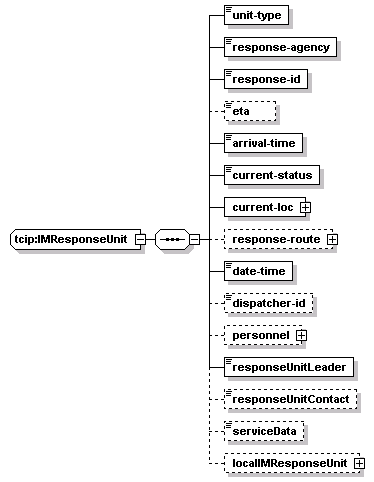

complexType tcip:IMResponseUnit

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	unit-type response-agency response-id eta arrival-time current-status current-loc response-route date-time dispatcher-id personnel responseUnitLeader responseUnitContact serviceData localIMResponseUnit
used by	elements  tcip:ImCommandIncidentResponse/response-units/response-unit tcip:IMIncident/response-units/response-unit tcip:IMIncident/units/unit
source	<xs:complexType name="IMResponseUnit">   <xs:sequence>     <xs:element name="unit-type" type="IM-ResponseUnitType"/>     <xs:element name="response-agency" type="IM-ResponseAgencyID"/>     <xs:element name="response-id" type="IM-ResponseUnitID"/>     <xs:element name="eta" type="CPT-DateTime" minOccurs="0"/>     <!-- specified when status =2 or =3 -->     <xs:element name="arrival-time" type="CPT-DateTime"/>     <xs:element name="current-status" type="IM-CurrentStatus"/>     <xs:element name="current-loc" type="lrms:GeoLocation"/>     <xs:element name="response-route" type="atis:Route" minOccurs="0"/>     <!-- Path to incident site or rendezvous point -->     <xs:element name="date-time" type="CPT-DateTime"/>     <!-- (Current time) -->     <xs:element name="dispatcher-id" type="IM-DispatcherID" minOccurs="0"/>     <xs:element name="personnel" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="50">           <xs:element name="personnel-item" type="IMResponsePerson"/>           <!-- crew -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="responseUnitLeader" type="IM-ResponseEmployeeID"/>     <xs:element name="responseUnitContact" type="IM-ResponseEmployeeID" minOccurs="0"/>     <xs:element name="serviceData" type="CPT-Footnote" minOccurs="0"/>     <xs:element name="localIMResponseUnit" type="local:IMResponseUnit" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:IMResponseUnit/unit-type

diagram
type	tcip:IM-ResponseUnitType
properties	isRef  0 content  simple
source	<xs:element name="unit-type" type="IM-ResponseUnitType"/>

element tcip:IMResponseUnit/response-agency

diagram
type	tcip:IM-ResponseAgencyID
properties	isRef  0 content  simple
facets	minLength  1 maxLength  20
source	<xs:element name="response-agency" type="IM-ResponseAgencyID"/>

element tcip:IMResponseUnit/response-id

diagram
type	tcip:IM-ResponseUnitID
properties	isRef  0 content  simple
source	<xs:element name="response-id" type="IM-ResponseUnitID"/>

element tcip:IMResponseUnit/eta

diagram
type	tcip:CPT-DateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="eta" type="CPT-DateTime" minOccurs="0"/>

element tcip:IMResponseUnit/arrival-time

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="arrival-time" type="CPT-DateTime"/>

element tcip:IMResponseUnit/current-status

diagram
type	tcip:IM-CurrentStatus
properties	isRef  0 content  simple
source	<xs:element name="current-status" type="IM-CurrentStatus"/>

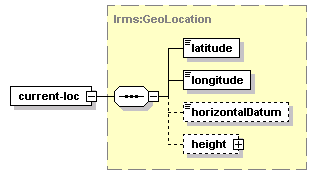

element tcip:IMResponseUnit/current-loc

diagram
type	lrms:GeoLocation
properties	isRef  0 content  complex
children	latitude longitude horizontalDatum height
source	<xs:element name="current-loc" type="lrms:GeoLocation"/>

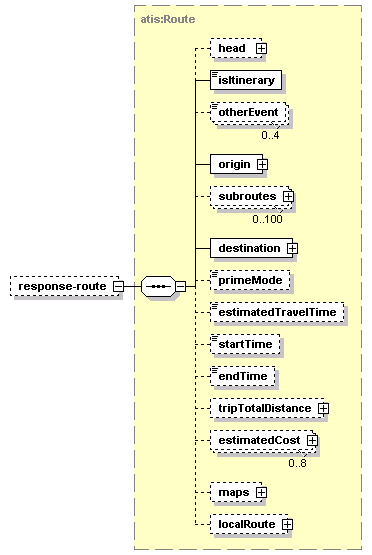

element tcip:IMResponseUnit/response-route

diagram
type	atis:Route
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	head isItinerary otherEvent origin subroutes destination primeMode estimatedTravelTime startTime endTime tripTotalDistance estimatedCost maps localRoute
source	<xs:element name="response-route" type="atis:Route" minOccurs="0"/>

element tcip:IMResponseUnit/date-time

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="date-time" type="CPT-DateTime"/>

element tcip:IMResponseUnit/dispatcher-id

diagram
type	tcip:IM-DispatcherID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="dispatcher-id" type="IM-DispatcherID" minOccurs="0"/>

element tcip:IMResponseUnit/personnel

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	personnel-item
source	<xs:element name="personnel" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="50">       <xs:element name="personnel-item" type="IMResponsePerson"/>       <!-- crew -->     </xs:sequence>   </xs:complexType> </xs:element>

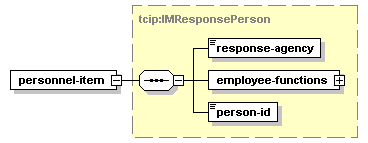

element tcip:IMResponseUnit/personnel/personnel-item

diagram
type	tcip:IMResponsePerson
properties	isRef  0 content  complex
children	response-agency employee-functions person-id
source	<xs:element name="personnel-item" type="IMResponsePerson"/>

element tcip:IMResponseUnit/responseUnitLeader

diagram
type	tcip:IM-ResponseEmployeeID
properties	isRef  0 content  simple
source	<xs:element name="responseUnitLeader" type="IM-ResponseEmployeeID"/>

element tcip:IMResponseUnit/responseUnitContact

diagram
type	tcip:IM-ResponseEmployeeID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="responseUnitContact" type="IM-ResponseEmployeeID" minOccurs="0"/>

element tcip:IMResponseUnit/serviceData

diagram
type	tcip:CPT-Footnote
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="serviceData" type="CPT-Footnote" minOccurs="0"/>

element tcip:IMResponseUnit/localIMResponseUnit

diagram
type	IMResponseUnit
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localIMResponseUnit" type="local:IMResponseUnit" minOccurs="0"/>
