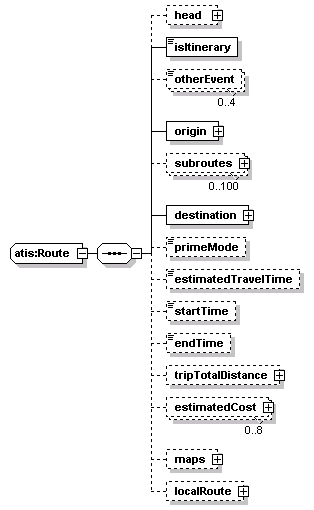

complexType atis:Route

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	head isItinerary otherEvent origin subroutes destination primeMode estimatedTravelTime startTime endTime tripTotalDistance estimatedCost maps localRoute
used by	elements  tcip:PiTripItineraryList/alternatives/alternative NetworkConditions/bundledATIS/detours/detour RouteSet/detours/detour atis:ResponseGroup/detour tcip:PiItineraryMapSub/itinerarys/itinerary tcip:PiItineraryMap/itinerarys/itinerary tcip:PiItineraryFareSub/itinerarys/itinerary tcip:PiDirections/itinerary tcip:PiItineraryFare/itineraries/itinerary tcip:SCHTimepointInterval/location tcip:IMResponseUnit/response-route tcip:PiTripItineraryList/returnAlternatives/returnAlternative atis:RouteOrLocation/route atis:ResponseGroup/route RouteSet/routes/route NetworkConditions/bundledATIS/routes/route tcip:IMIncident/route-location atis:RouteRequest/routeOutline
source	<xs:complexType name="Route">   <xs:sequence>     <xs:element name="head" type="Head" minOccurs="0"/>     <xs:element name="isItinerary">       <xs:simpleType>         <xs:restriction base="xs:boolean"/>       </xs:simpleType>     </xs:element>     <!-- set true if details present -->     <xs:element name="otherEvent" type="im:ReferenceID" minOccurs="0" maxOccurs="4"/>     <xs:element name="origin" type="lrms:PointLocation"/>     <xs:element name="subroutes" type="SubRoute" minOccurs="0" maxOccurs="100"/>     <xs:element name="destination" type="lrms:PointLocation"/>     <xs:element name="primeMode" type="Mode" minOccurs="0"/>     <!-- primary mode of travel -->     <xs:element name="estimatedTravelTime" type="TimeInterval" minOccurs="0"/>     <xs:element name="startTime" type="DateTimePair" minOccurs="0"/>     <xs:element name="endTime" type="DateTimePair" minOccurs="0"/>     <xs:element name="tripTotalDistance" type="lrms:Distance" minOccurs="0"/>     <xs:element name="estimatedCost" type="ComplexCost" minOccurs="0" maxOccurs="8"/>     <xs:element name="maps" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="100">           <xs:element name="map">             <xs:complexType>               <xs:sequence>                 <xs:element name="mapLink" type="URL-Link" minOccurs="0"/>                 <!-- Points to a graphic depicting the route or part of it. -->                 <xs:element name="descr" type="Freetext" minOccurs="0"/>                 <!-- A name or description for the map -->               </xs:sequence>             </xs:complexType>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="localRoute" type="local:Route" minOccurs="0"/>   </xs:sequence> </xs:complexType>

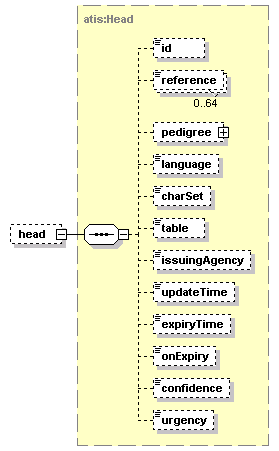

element atis:Route/head

diagram
type	atis:Head
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	id reference pedigree language charSet table issuingAgency updateTime expiryTime onExpiry confidence urgency
source	<xs:element name="head" type="Head" minOccurs="0"/>

element atis:Route/isItinerary

diagram
type	restriction of xs:boolean
properties	isRef  0 content  simple
source	<xs:element name="isItinerary">   <xs:simpleType>     <xs:restriction base="xs:boolean"/>   </xs:simpleType> </xs:element>

element atis:Route/otherEvent

diagram
type	ReferenceID
properties	isRef  0 minOcc  0 maxOcc  4 content  simple
facets	minLength  1 maxLength  64
source	<xs:element name="otherEvent" type="im:ReferenceID" minOccurs="0" maxOccurs="4"/>

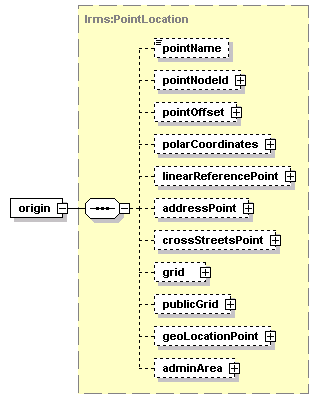

element atis:Route/origin

diagram
type	lrms:PointLocation
properties	isRef  0 content  complex
children	pointName pointNodeId pointOffset polarCoordinates linearReferencePoint addressPoint crossStreetsPoint grid publicGrid geoLocationPoint adminArea
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="origin" type="lrms:PointLocation"/>

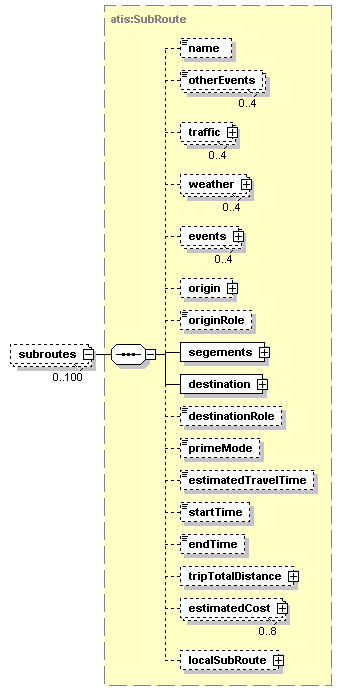

element atis:Route/subroutes

diagram
type	atis:SubRoute
properties	isRef  0 minOcc  0 maxOcc  100 content  complex
children	name otherEvents traffic weather events origin originRole segements destination destinationRole primeMode estimatedTravelTime startTime endTime tripTotalDistance estimatedCost localSubRoute
source	<xs:element name="subroutes" type="SubRoute" minOccurs="0" maxOccurs="100"/>

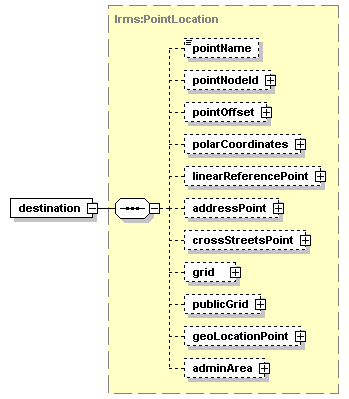

element atis:Route/destination

diagram
type	lrms:PointLocation
properties	isRef  0 content  complex
children	pointName pointNodeId pointOffset polarCoordinates linearReferencePoint addressPoint crossStreetsPoint grid publicGrid geoLocationPoint adminArea
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="destination" type="lrms:PointLocation"/>

element atis:Route/primeMode

diagram
type	atis:Mode
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="primeMode" type="Mode" minOccurs="0"/>

element atis:Route/estimatedTravelTime

diagram
type	atis:TimeInterval
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="estimatedTravelTime" type="TimeInterval" minOccurs="0"/>

element atis:Route/startTime

diagram
type	atis:DateTimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="startTime" type="DateTimePair" minOccurs="0"/>

element atis:Route/endTime

diagram
type	atis:DateTimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="endTime" type="DateTimePair" minOccurs="0"/>

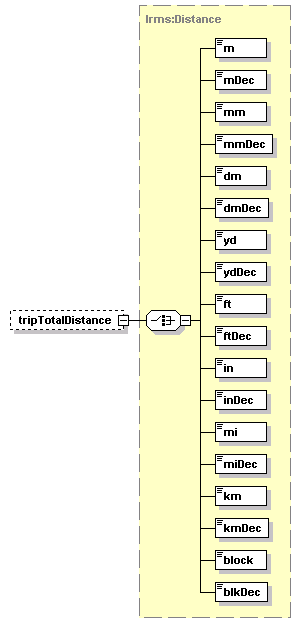

element atis:Route/tripTotalDistance

diagram
type	lrms:Distance
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	m mDec mm mmDec dm dmDec yd ydDec ft ftDec in inDec mi miDec km kmDec block blkDec
source	<xs:element name="tripTotalDistance" type="lrms:Distance" minOccurs="0"/>

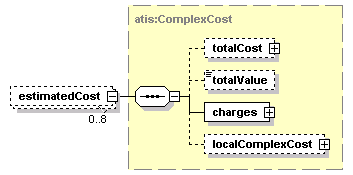

element atis:Route/estimatedCost

diagram
type	atis:ComplexCost
properties	isRef  0 minOcc  0 maxOcc  8 content  complex
children	totalCost totalValue charges localComplexCost
source	<xs:element name="estimatedCost" type="ComplexCost" minOccurs="0" maxOccurs="8"/>

element atis:Route/maps

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	map
source	<xs:element name="maps" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="100">       <xs:element name="map">         <xs:complexType>           <xs:sequence>             <xs:element name="mapLink" type="URL-Link" minOccurs="0"/>             <!-- Points to a graphic depicting the route or part of it. -->             <xs:element name="descr" type="Freetext" minOccurs="0"/>             <!-- A name or description for the map -->           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element atis:Route/maps/map

diagram
properties	isRef  0 content  complex
children	mapLink descr
source	<xs:element name="map">   <xs:complexType>     <xs:sequence>       <xs:element name="mapLink" type="URL-Link" minOccurs="0"/>       <!-- Points to a graphic depicting the route or part of it. -->       <xs:element name="descr" type="Freetext" minOccurs="0"/>       <!-- A name or description for the map -->     </xs:sequence>   </xs:complexType> </xs:element>

element atis:Route/maps/map/mapLink

diagram
type	atis:URL-Link
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  255
source	<xs:element name="mapLink" type="URL-Link" minOccurs="0"/>

element atis:Route/maps/map/descr

diagram
type	atis:Freetext
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  500
source	<xs:element name="descr" type="Freetext" minOccurs="0"/>

element atis:Route/localRoute

diagram
type	Route
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localRoute" type="local:Route" minOccurs="0"/>
